Most drilling jobs fail on the access road, not the rock. A wheeled rig that can’t climb a wet slope never reaches the hole, and every hour spent winching it out is lost revenue. YG crawler DTH drill rig solves that: tracks grip soft ground, carry the weight low, and climb grades a loaded truck can’t. YG builds 5 tracked models from 3.8T to 8T, drilling 83-165mm holes at 2.5-4km/h. Here’s what separates them, and which one fits your site and budget.
Crawler DTH Drill Rig Specifications
Five models share the same tracked chassis design and YC diesel engines. Hole diameter and horizontal reach are what separate them.
| odel | YGS100A | YGS153 | YGS180 | YGS300 | YGS350 |
| Total weight | 5.95T | 3.8T | 6.3T | 6.8T | 8T |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.2/3.8km/h | 4km/h 2km/h |
| Diesel tank capacity | 85L | 70L | 85L | 85L | 225L |
| Shipping size | 6500*2100*2400mm | 4640*1980*2260mm | 6600*2110*2500mm | 6600*2220*2600mm | 7600*2350*2800mm |
| Drilling hole diameter | 90-146mm | 83-130mm | 90-146mm | 90-152mm | 90-165mm |
| Power configuration | YCD4R22T-80 | YC2108 33kw/2400rpm | YCD4R22T-80 55kw | YC4DK80-T302 | YC4DK100-T304 73.5kw/2200rpm |
| Highest horizontal hole height | 3.2m | 2.8m | 3.6m | 3.25m | 3.5m |
Note: YGS300 runs two walking speeds: 2.2km/h for working passes and 3.8km/h for moving between benches.
Get Crawler DTH Drill Rig Free Quote
Why a Crawler Mounted DTH Drilling Rig Beats Wheeled Units
On paper, a wheeled rig is cheaper. On a real site, the difference shows up fast.
| Point | Wheeled Rig | Crawler Rig |
| Soft or wet ground | Sinks, needs matting | Floats on wide tracks |
| Slope climbing | Limited by traction | Grips and climbs |
| Ground pressure | High, concentrated | Low, spread over track length |
| Setup on rough ground | Needs a level pad | Sets up on uneven ground |
| Road travel | Faster on tarmac | Needs a trailer |
Ground pressure is the big one. A crawler spreads 6-8 tonnes across two long tracks, so it stays on top of mud, sand, and loose spoil where a wheeled chassis digs in.
Climbing matters more than speed. A 2.5km/h crawler that reaches the bench beats a 15km/h truck that gets stuck 400m short.
Is your site paved or dirt? Tell us the ground condition, and we’ll say straight whether a crawler mounted DTH drilling rig is worth the extra cost for your work. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
Get Crawler DTH Drill Rig Quote
Where a Crawler DTH Drill Rig Earns Its Money

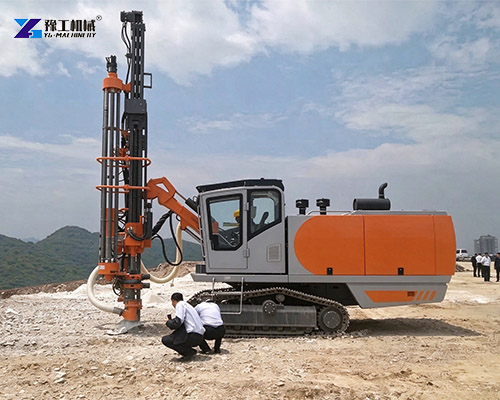

- Quarry benches. Drill blast holes on stepped faces where a truck can’t park level.
- Water wells in hill country. Reach village sites at the end of dirt tracks, especially in the rainy season.
- Slope stabilization and micro-piles. Work on gradients and soft shoulders where ground pressure matters.
Case: Granite Quarry in Ethiopia — 1,800m to 3,200m a Month
A quarry supplying granite aggregate to a highway project in the Oromia highlands ran a wheeled DTH rig. In the dry season it worked; once the rains came, the access tracks turned to clay and the rig couldn’t reach the upper benches. He found YG through a Google search and sent photos of the roads on WhatsApp.
We recommended the YGS180 — 6.3T, 3.6m horizontal reach, 2.5km/h tracking, drilling 90-146mm blast holes in granite.
Results over one season:
- Bench-to-bench transfer dropped from 6 hours to 2
- Monthly drilled meters rose from 1,800m to 3,200m
- No rain-season shutdown
- Payback in about 9 months
“YG crawler dth drill rig go where the truck used to stop. We drill the same benches year-round now, rain or dry.” — Tesfaye B., Ethiopia
Talk to Our Engineer on WhatsApp：+86 159 3715 2330
How to Choose the Right Crawler DTH Rig
Step 1: Hole diameter. 83-130mm points to YGS153. 146-165mm needs YGS300 or YGS350.
Step 2: Ground and access. Soft, wet, or sloped ground makes tracks mandatory. Hard flat pads can justify a cheaper wheeled unit.
Step 3: Horizontal reach. Drilling above track level? Pick 3.6m (YGS180) rather than 2.8m.
Step 4: Daily hours. Running two shifts? The 225L tank on YGS350 avoids refuelling stops.
Send us your current rig model and daily meterage, and we’ll estimate what a switch would gain you. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
Get Crawler DTH Drill Rig Quote
Crawler Mounted DTH Drilling Rig FAQ
Q 1: How Deep Can Crawler DTH Drill Rig Drill?
Depth depends on the hammer and rod string, not the carrier. With standard 3m rods, these rigs handle 20-30m routinely, and deeper with rod changes.
Q 2: Will the Tracks Damage Paved Roads?
Steel tracks mark asphalt. For road travel, load the rig on a trailer. Track movement is for site work, not highway transport.
Q 3: How Many People Does It Take to Operate?
Two. One operator at the controls, one handling rods and the compressor connection.
Q 4: Is 33kw Enough for Hard Rock?
For 83-130mm holes in medium rock, yes. For 165mm in granite or basalt, step up to the 73.5kw YGS350.
Q 5: What’s the Lead Time and Warranty?
Standard models ship in 25-35 days after deposit. Warranty covers 12 months on structure and hydraulics, with hammers, bits, and seals available from stock.
Get Factory Price and Lead Time
Crawler DTH Drill Rig for Sale — YG Machinery
YG Machinery manufactures crawler DTH drill rigs in 5 tracked models from 3.8T to 8T, covering 83-165mm hole diameters. Every unit is load-tested before shipment and ships with an English manual, spare seal kit, and operation video.
We also supply DTH hammers, bits, and air compressors, so you can order a complete drilling package from one factory. Rigs run in quarries and water projects across Africa, Southeast Asia, the Middle East, and Latin America.
Send your hole diameter, ground condition, and daily target. You’ll get a model recommendation and a factory price within 24 hours.
