A hydraulic wall saw is professional equipment for cutting thick concrete structures with controlled force and stable blade movement. It is commonly used for concrete wall openings, building renovation, bridges, tunnels, and infrastructure projects. YG hydraulic concrete wall saws support blade diameters from 800 to 1600 mm and cutting depths up to 730 mm. Their hydraulic drive provides adjustable pressure and oil flow for demanding cutting work. If you need a wall cutting saw for your construction project, contact YG for model selection and factory support. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
YG Hydraulic Wall Saw Cutting Machine Parameters
YG offers two models. Both include a hydraulic power station and a track-mounted saw head.
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
Hydraulic Wall Saw vs Other Concrete Cutting Equipment
Not every concrete cutting job requires the same machine.
A handheld cutter can be practical for smaller or shallow jobs. A wall saw becomes more useful when the structure is thick and the cut needs to follow a controlled path.
Hydraulic Wall Saw for Heavy Concrete
A hydraulic wall cutter is designed for demanding cutting tasks.
YG machines support blade diameters up to 1600 mm and listed cutting depths up to 730 mm.
This makes them suitable for applications where conventional handheld equipment may not provide enough cutting capacity.
Wall Cutting Saw for Controlled Openings
A wall cutting saw is useful when contractors need to create a defined opening.
Examples include:
• Doors and windows
• Ventilation openings
• Cable passages
• Pipe openings
• Structural modification
The cutting path can be planned before work begins. This helps contractors control the section that needs to be removed.
How the Hydraulic Wall Saw System Works

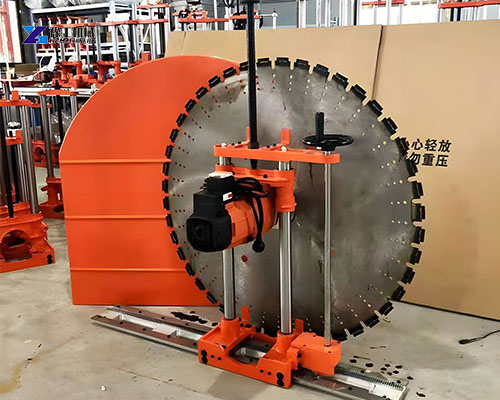

The system has two separate parts. The power station stays on the ground. The saw head mounts on a track fixed to the wall.
Hydraulic hoses connect the two parts. The power station sends pressurized oil to the saw head motor. This spins the diamond blade at 450 to 1300 RPM.
The operator uses a remote control to move the saw head along the track. Water flows over the blade during cutting. This cools the blade and controls dust.
The three-stage pressure system lets you match power to the material. Lower pressure works for brick. Higher pressure handles reinforced concrete.
4 Features That Improve Cutting Performance
The YG hydraulic wall saw includes features that make daily work easier and safer.
Three-Stage Pressure Control
You can switch between three pressure settings during a cut. Start low to score the surface. Increase pressure as you go deeper. This extends blade life.
Gear-Driven Rotation
The gear drive delivers consistent torque at all speeds. There is no belt slip under heavy load. This means fewer stalls and faster cuts.
Overload Protection
The hydraulic system includes built-in overload protection. If the blade binds, the system stops before damage occurs. This protects both the blade and the motor.
Water-Cooled Option on YG 700
The YG 700 uses a water-cooled motor. This allows longer continuous operation without overheating. It is the better choice for thick walls and large projects.
FAQs for Hydraulic Wall Saw Global Buyers
Q1: What is the maximum cutting depth of YG hydraulic wall saw?
A1：YG600 model supports a maximum cutting depth of 620mm. The upgraded YG700 model reaches 730mm, which can meet most thick reinforced concrete wall cutting demands for industrial and municipal projects.
Q2: What is the difference between air cooling and water cooling models?
A2：YG600 air cooling model is lightweight and suitable for intermittent short-term construction. YG700 water cooling model maintains stable power output and low heat generation, ideal for long-time continuous heavy-duty cutting projects.
Q3: Can the wall cutting saw adapt to different country voltage?
A3：Yes. YG700 supports wide voltage of 380V-420V and 50/60Hz frequency, compatible with most national power standards. For special voltage requirements, we can customize the motor configuration.
Q4: What blade diameter options are available for the machine?
A4：Both models support replaceable saw blades. The blade diameter ranges from 800mm to 1400mm for YG600 and 800mm to 1600mm for YG700, meeting different cutting depth needs.
Q5: Is daily maintenance complicated for hydraulic wall saw?
A5：Maintenance is simple. Users only need to check hydraulic oil level, seal parts and blade wear regularly. Clean the hydraulic station and track system after each use. Regular inspection can greatly extend machine service life.
Hydraulic Wall Saw for Sale-YG Machinery
YG is a professional manufacturer of hydraulic wall saws and concrete cutting equipment. Our YG 600 and YG 700 models deliver reliable performance for reinforced concrete, bridge, and tunnel work. We provide complete support from selection to after-sales service. If you need a dependable wall cutting saw, contact YG today. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
