An electric glass lifter helps glass installers, contractors, and factory operators move and position heavy glass panels with greater control. It is useful for curtain wall installation, window manufacturing, and glass processing, where manual handling can require considerable labor. Choosing the right machine depends on panel weight, lifting height, working space, and the required positioning functions. YG Machinery offers five models with different load capacities and suction cup configurations, helping international buyers find suitable equipment for their glass handling and installation projects.【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
YG Machinery provides five electric glass lifter models: YG-LD-300, YG-LD-400, YG-LD-500, YG-LD-600, and YG-LD-800. Their rated capacities range from 300 kg to 800 kg in the retracted position.
Request Electric Glass Lifter Pricing
Electric Glass Lifter Models and Specifications
Compare the specifications below to select a model for your project.
| Parameter | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 |
|---|---|---|---|---|---|
| Capacity, retracted | 300 kg ( 661 lbs) | 400 kg (881 lbs) | 500 kg (1102 bs) | 600 kg (1322 lbs) | 800 kg (1763 lbs |
| Capacity, extended | 150 kg | 200 kg | 250 kg | 300 kg | 400 kg |
| Lifting height | 3500 mm | 3500 mm | 3700 mm | 3700 mm | 4500 mm |
| Suction cups | 4 | 4 | 6 | 6 | 8 |
| Cup diameter | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Battery | 2×12V/80Ah | 2×12V/100Ah | 2×12V/120Ah | 2×12V/120Ah | 2×12V/120Ah |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W |
| Net weight | 1100 kg | 1280 kg | 1300 kg | 1400 kg | 1600 kg |
All models feature maintenance-free batteries and smart chargers.
How to choose a model:
- YG-LD-300/400: For loads within their lower rated capacities.
- YG-LD-500/600: For projects requiring capacities of 500–600 kg in the retracted position.
- YG-LD-800: For loads up to 800 kg when retracted and lifting heights up to 4500 mm.
Always follow the rated capacity for the actual working position. The permitted load decreases when the machine is extended.

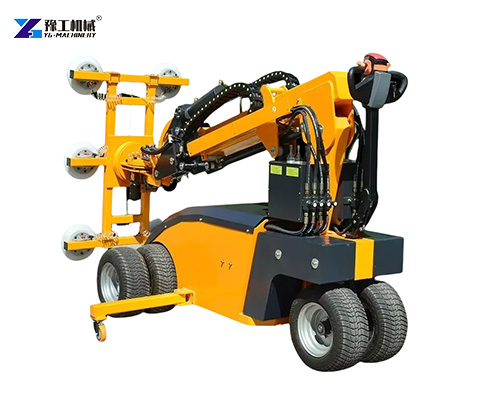

Electric Vacuum Glass Lifter Features
YG electric vacuum glass lifters combine vacuum suction with powered lifting and positioning.
- Electric lifting: The hydraulic arm lifts materials to the required height within its rated range.
- Powered movement: The suction cup frame flips 180° electrically, and the support plate retracts automatically.
- Horizontal adjustment: The machine base moves horizontally by 100–150 mm.
- Multiple suction cups: Models have four, six, or eight 300 mm rubber suction cups.
- Battery operation: A 24V drive motor and model-specific battery configuration support powered operation.
Manual rotation through 90° and 360° is available, with electrically powered rotation offered as an option.
Before ordering, confirm that the material surface can maintain a suitable vacuum seal and that the panel dimensions and weight fit the machine’s operating limits.
Get Electric Glass Lifter Quote
Electric Glass Lifter Applications
An electric glass lifter can support several material-handling tasks, subject to load and surface compatibility.
- Curtain walls: Lift and position suitable glass panels during building installation.
- Windows and doors: Move glass during manufacturing and assembly.
- Glass factories: Transfer panels between workstations and designated handling areas.
- Warehouses: Handle compatible flat panels within suitable working spaces.
- Other materials: Marble, wood, and iron plates may be handled when their surfaces are suitable for vacuum attachment.
Check floor conditions, aisle width, panel dimensions, and installation height before choosing a model.
Request a Electric Glass Lifter Quote
International Customer Cases: Electric Glass Lifter Projects
Case 1: Glass Curtain Wall Installation in Thailand
A curtain wall contractor in Bangkok, Thailand, needed to install glass panels on a 40-story commercial building. The team wanted to reduce manual handling and improve daily installation efficiency.
YG Equipment: YG-LD-500 Electric Glass Lifter
- Rated load capacity: 500 kg when retracted and 250 kg when extended.
- Lifting height: 3700 mm.
- Suction cups: 6 × Ø300 mm.
- YG supplied five machines to support glass lifting and positioning.
The project report indicated that daily installation output increased from approximately 10 to 30 panels per machine, helping the contractor improve work efficiency.
Customer Feedback:
“The glass lifter helped our team handle panels more efficiently and reduced manual work on site.”
Case 2: High-Rise Glass Installation in Saudi Arabia
A construction contractor in Saudi Arabia needed reliable equipment to handle large glass panels during high-rise curtain wall installation. The team wanted to improve positioning efficiency and reduce manual handling.
YG Equipment: YG-LD-600 Electric Glass Lifter
- Rated load capacity: 600 kg when retracted and 300 kg when extended.
- Lifting height: 3700 mm.
- Suction cups: 6 × Ø300 mm.
- Electric lifting and positioning functions support glass installation tasks within the machine’s rated operating limits.
The YG-LD-600 provided a suitable capacity option for the project’s glass handling requirements. The final selection should always be checked against panel dimensions, working position, and site conditions.
Customer Feedback:
“The equipment made glass handling more manageable and helped our team position panels with greater control.”
Get Electric Glass Lifter Quote
Electric Glass Lifter ROI: Estimate Your Payback Period
An electric glass lifter may reduce handling labor and improve workflow, but the actual return depends on usage and operating costs.
Consider this hypothetical example:
- Equipment investment: $15,000
- Estimated daily labor savings: $40
- Working days per month: 22
- Estimated monthly savings: $40 × 22 = $880
The simple payback period would be:
$15,000 ÷ $880 ≈ 17 months
These figures are illustrative only, not actual YG pricing or verified customer results. The calculation excludes shipping, maintenance, charging, training, and other costs.
For a more realistic estimate, calculate your net monthly savings after operating expenses. Also consider reductions in handling delays or glass damage only when you have reliable data to support them.
Request a Quote for Your Investment Estimate
Electric Glass Lifter FAQs
1. What Is the Maximum Capacity of a YG Electric Glass Lifter?
The YG-LD-800 supports up to 800 kg in the retracted position and 400 kg in the extended position. Always follow the applicable rated capacity.
2. How Do I Choose the Right Model?
Compare the panel’s maximum weight, required lifting height, dimensions, and working position with the specifications of each model.
3. Can the Machine Handle Marble and Metal Plates?
YG lists marble, wood, and iron plates among its intended applications. Surface suitability and vacuum sealing must be confirmed before use.
4. What Power System Does the Machine Use?
The models use 24V drive and lifting motors with two 12V maintenance-free batteries. Battery capacity varies by model.
5. How Can I Get a Quotation?
Provide the material type, maximum load, panel dimensions, lifting height, required functions, quantity, and destination country.
Contact YG Machinery for an Electric Glass Lifter
YG Machinery offers five electric glass lifter models with retracted load capacities from 300 kg to 800 kg and lifting heights from 3500 mm to 4500 mm.
Tell us about your material, panel weight, working height, and project location. Our team can help you review the available models and confirm the appropriate configuration, packing details, and quotation. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
