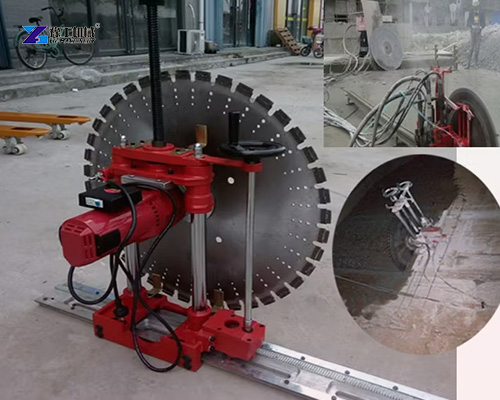

Concrete demolition and renovation projects in the USA demand precise cutting through reinforced walls, floors, and ceilings. Traditional methods like jackhammers create vibration damage, excessive noise, and jagged edges that require additional repair work. Diamond wire saws handle thick sections but require complex setup and constant water management. Many contractors need a cleaner, faster solution for straight cuts in reinforced concrete. YG Machinery’s wall saw cutting machine solves these problems with track-mounted hydraulic saw heads that deliver straight, clean cuts up to 730mm deep. The YG600 and YG700 models offer blade diameters from 800 to 1600mm and motor power from 25 to 30KW. These hydraulic concrete wall saws have gained strong traction across US demolition and renovation sectors. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
Get Wall Saw Cutting Machine Quote
Wall Saw Cutting Machine Parameters
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
Get Wall Saw Cutting Machine Quote
Case Study One: USA – Hospital Renovation Wall Removal
Client Background
A US demolition contractor secured a hospital renovation project in Texas. The scope included removing 180 linear meters of reinforced concrete walls to create new patient room layouts. The walls measured 400mm thick with double rebar mats.
Client Challenge
The contractor needed clean, straight cuts without vibration damage to adjacent medical equipment. Jackhammer methods created too much noise and dust for an operating hospital. The client required a wall saw cutter that could cut through 400mm reinforced walls in a single pass.
YG Solution
YG supplied the YG700 wall saw cutting machine with 800-1600mm blade range and 730mm cutting depth. The 30KW water-cooled motor handles continuous cutting through double rebar. The track-mounted saw head attaches directly to the wall surface for stable, straight cuts.
Client Feedback and Results
“The YG700 cut through 400mm reinforced walls like butter. We completed 180 linear meters in 6 night shifts with zero complaints from hospital staff.” The contractor confirmed the project finished 3 days ahead of schedule. The hospital saved $12,000 in dust containment costs.
Get Wall Saw Cutting Machine Quote
Case Study Two: Australia – Bridge Deck Expansion Joint Replacement
Client Background
An Australian infrastructure contractor won a contract to replace expansion joints on a 45-year-old concrete bridge. The project required cutting 120 linear meters of deck concrete to prepare for new joint installation.
Client Challenge
The bridge remained open to traffic during construction, creating vibration from passing vehicles. The contractor needed a hydraulic concrete wall saw that could cut horizontally along the deck surface with precise depth control. Work windows were limited to 4-hour night closures.
YG Solution
YG recommended the YG600 wall saw cutting machine with 800-1400mm blade range and 620mm cutting depth. The 25KW air-cooled motor handles the Australian heat without water cooling connections. The track system mounts directly to the bridge deck for stable horizontal cutting.
Client Feedback and Results
“The YG600 handled the bridge deck cutting exactly as needed. The depth control let us cut within 5mm of the rebar without damage. We completed each 4-hour window with time to spare.” The contractor confirmed the project finished on schedule with no traffic delays.
Request Hydraulic Wall Saw Pricing
Wall Saw vs. Diamond Wire Saw: Which Fits Your Project?
| Feature | Wall Saw Cutting Machine | Diamond Wire Saw |
| Setup time | 15-30 minutes | 1-2 hours |
| Cut shape | Straight lines and angles | Any shape including curves |
| Cutting depth | Up to 730mm | Unlimited |
| Cutting speed | Faster on straight cuts | Slower but consistent |
| Water usage | Moderate | High |
| Portability | Track-mounted, compact | Requires pulley system |
| Best application | Walls, floors, straight openings | Thick sections, curved cuts, remote access |
The wall saw cutting machine wins on speed and simplicity for straight cuts in walls and floors. Diamond wire saws handle complex geometry and very thick sections where track mounting is impractical. Many contractors keep both tools for different project requirements.
Request Hydraulic Wall Saw Pricing
Wall Saw Cutting Machine for Sale – YG Machinery
YG Machinery offers reliable wall saw cutting machine for sale for US, Australian, and worldwide concrete demolition projects. Our hydraulic concrete wall saw series provides YG600 and YG700 models with track-mounted saw heads, 620-730mm cutting depth, and 25-30KW power stations. Contact YG Machinery with your wall thickness and reinforcement specifications. Our team provides transparent pricing, model selection support, and global shipping. 【WhatsApp/WeChat/Skype/Phone】+86 159 3715 2330
Request Hydraulic Wall Saw Pricing
Frequently Asked Questions
Q: What is the maximum cutting depth of the wall saw cutting machine?
The YG600 cuts up to 620mm deep with 800-1400mm blades. The YG700 cuts up to 730mm deep with 800-1600mm blades. Depth depends on blade diameter and wall thickness.
Q: What power supply does the hydraulic concrete wall saw require?
Both models use 380V three-phase power. The YG700 accepts 380V-420V at 50HZ-60HZ for international compatibility.
Q: How heavy is the wall saw cutter and power station?
The YG600 power station weighs 220kg and the saw head weighs 38kg. The YG700 power station weighs 140kg and the saw head weighs 39kg. Two workers can position both units.
Q: Does the wall saw cutting machine require water cooling?
The YG600 uses air cooling for the motor. The YG700 uses water cooling. Both models use water at the blade for dust suppression and blade cooling during cutting.
Q: What blade types work with the YG wall saw?
The machines accept standard diamond blades from 800mm to 1600mm diameter. Choose blade segments based on concrete hardness and reinforcement density.
