DTH Drilling Rig | Buy Integrated DTH Drilling Rig for Sale

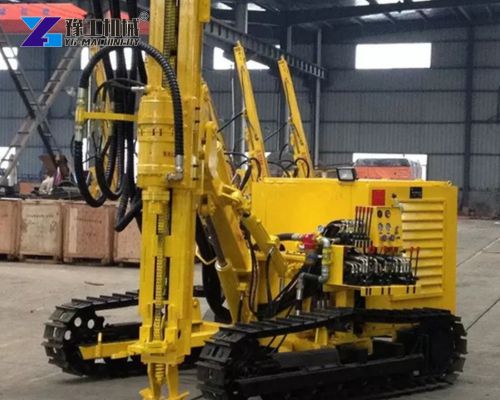

A down the hole drill rig is a powerful machine. It is used for drilling holes in hard rock. This equipment is very different from top hammer drills. The hammer is placed directly behind the drill bit, down in the hole. This design sends impact energy straight to the rock. There is very little energy loss.

This makes it perfect for deep holes. It also works well in hard rock conditions. You will see a down the hole drill rig in many places. They are used in quarries, mines, and for water well drilling. The machine gives straight, clean holes. This is very important for blasting. When holes are accurate, blasting is safer and more effective.

Free Quote

YG Hot-sale Down The Hole Drill Rig Specifications-OEM Support

Model	YGS100A	YGS153	YGS180	YGS300	YGS350
Total weight	5.95T	3.8T	6.3T	6.8T	8T
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.2/3.8km/h	4km/h 2km/h
Diesel tank capacity	85L	70L	85L	85L	225L
Shipping size	650021002400mm	464019802260mm	660021102500mm	660022202600mm	760023502800mm
Drilling hole diameter	90-146mm	83-130mm	90-146mm	90-152mm	90-165mm
Power configuration	YCD4R22T-80	YC2108 33kw/2400rpm	YCD4R22T-80 55kw	YC4DK80-T302	YC4DK100-T304 73.5kw/2200rpm
Highest horizontal hole height	3.2m	2.8m	3.6m	3.25m	3.5m

Free Quote

4 Features of Our Down Hole Drilling Equipment

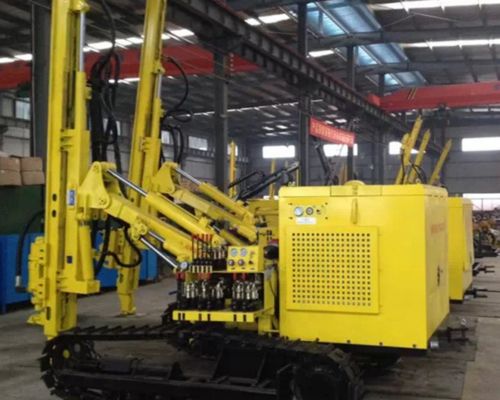

YG down hole drilling equipment is built for heavy work. It is made to last and perform. Below are its main features.

High‑Pressure Air System: Our drilling rigs adopt a high‑pressure air supply system to deliver powerful impact force to the hammer. It accelerates rock breaking for drill bits, effectively boosting your overall production efficiency.
Heavy‑Duty Rotation Head: The robust rotation head delivers consistent torque output, enabling smooth rotation of the drill string. It minimizes abrasion to drill rods and bits for extended service life of consumable parts.
Reliable Crawler Chassis: Fitted with a reinforced crawler chassis, the rig maintains solid stability on uneven, rugged terrain. Meanwhile, it grants flexible mobility so the unit can travel freely across work sites.
Optimized Rod Handling: Equipped with a carousel‑style rod changer, the rig stores multiple drill rods. It streamlines rod‑changing workflows, cutting down auxiliary downtime and maximizing actual drilling time.

4 Practical Applications for a Down The Hole Drill Rig

A down the hole drill rig is useful for many projects. Here are the main applications.

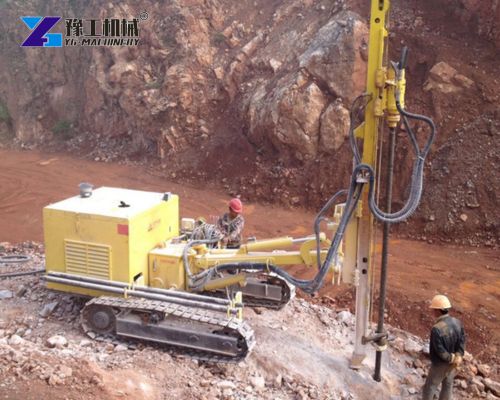

Mining: In mining, you need to drill blast holes. Our rig can handle holes from 83 mm to 165mm. The deep hole capability is a big help here. It allows for deeper blasts. This means more rock is moved per blast.
Quarrying: For stone quarries, hole straightness is key. A down the hole drill rig gives vertical holes. This helps produce big, even blocks of stone. It also reduces the risk of fly rock.
Water Well Drilling: The rig is also used for water wells. The hammer works well in hard rock layers. It can drill through difficult formations. This makes it a good choice for finding water.
Construction: In construction, it helps with foundation piling. It can drill holes for anchors and piles. This helps stabilize buildings and bridges.

Ask About Our Rig for Your Industry

How Does YG Down Hole Drilling Equipment Save You Money?

YG down hole drilling equipment is not just powerful. It is also cost-effective. Here is how it saves you money.

Less Fuel Consumption: The machine has an efficient engine. It meets Tier 3 emission standards. It uses less fuel compared to older models. This saves you money every day.
Longer Wear Parts Life: We use high-quality materials for the hammer and bit. These parts last longer. You will not need to change bits as often. This reduces your cost per foot.
Low Maintenance: The rig is designed for easy service. All key parts are easy to reach. This means less time spent on maintenance. The machine has a self-diagnosis system. It checks the air pressure and oil levels. This helps you find problems early. It prevents big failures.
Reduced Rod Damage: The rotation head gives a smooth rotation. This reduces stress on the drill rods. Rods are expensive. Protecting them saves you a lot of money.

Choosing the Right Down The Hole Drill Rig

Choosing the right rig is important. You need to match the machine to your needs. Here is a simple guide.

Check the Hole Diameter: What size hole do you need? Our DTH drill rigs support 83- 165 mm diameters. Choose the model that matches your bit size.
Check the Drilling Depth: How deep do you need to go? We offer single-pass depths up to 3.6 meters. For deeper holes, use rod additions. Our carousel can hold enough rods for most projects.
Check the Air Pressure: The right air pressure depends on the rock. Hard rock needs high pressure. Our rigs give you a wide range of pressure options.
Consider the Work Site: Is the ground flat or steep? Our crawler chassis is good for slopes up to 30 degrees. It is stable and safe on most terrains.

Common Mistakes to Avoid When Operating a Down The Hole Drill Rig

Even a good down the hole drill rig can have problems if not used correctly. Here are common mistakes to avoid.

Wrong Air Pressure Settings: Using too low air pressure reduces impact power. The hammer will not break rock well. This slows down drilling. Using too high pressure can damage internal parts. Always check the air compressor settings before starting.
Ignoring Lubrication: The hammer needs oil to work. Without enough oil, the piston and bits wear out fast. This can cause the hammer to fail completely. Check the oil injector daily. Make sure it has enough lubrication oil.
Not Checking Rod Threads: Drill rod threads get worn over time. Damaged threads cause poor connections. This can lead to rod loss down the hole. Lost rods are hard to recover. It costs time and money to fix.
Moving the Rig Too Fast on Slopes: The rig is heavy. Moving too fast on slopes can cause it to tip over. Always move slowly on uneven ground. Use the machine’s low gear for better control.

Avoiding these mistakes will keep your down hole drilling equipment running well. It extends the life of the machine. It also keeps your workers safe.
