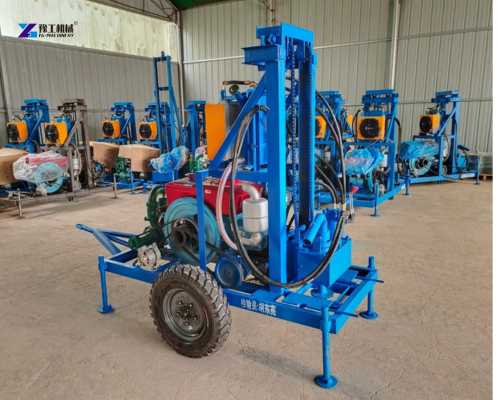

A mini water well drilling machine is a compact and lightweight piece of equipment used to drill small to medium-sized wells for groundwater. It is often called a small well drilling machine or a portable borewell machine. These machines are designed for easy transport and simple operation, making them ideal for farms, rural homes, and small construction sites.
If you need a reliable water source for irrigation, daily use, or emergency supply, a mini water well drilling machine can be a smart choice. Unlike large rigs, this equipment is affordable and easy to move from place to place. YG is a professional factory that manufactures these machines with durable parts and strong engines.
YG Portable Borewell Drills Specifications-OEM Support
Before buying a mini water well drilling machine, it helps to check the specs carefully. Here are typical details for the YG series:
| Model | YG180 | YG240 | YG280 | YG350 | YG500 |
| Voltage | 220V | 220V | 380V | gasoline/diesel | 380V |
| Power | 1.5-2kw | 4kw | 3kw | 8HP | 5.5kw |
| Drilling hole | 80-200mm | 80-220mm | 80-350mm | 80-280mm | 80-500mm |
| Drilling depth | 80M | 100M | 100M | 120M | 120M |
| Drilling rod | Φ42mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ51mm,1.5m | Φ65mm,2m |
| Pump power | 2.2kw | 2.2kw | 2.2kw | 3.5HP | 5.5kw |
| Dimension | 0.7*0.7*2.5m | 0.7*0.7*2.5m | 0.8*0.8*2.7m | 0.8*0.8*2.7m | 1*1.5*2m |
| Weight | 120KG | 150KG | 250KG | 200KG | 600KG |

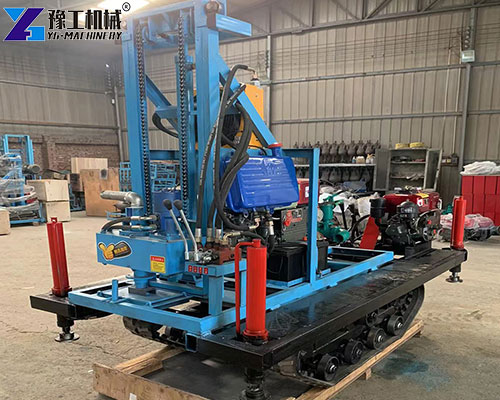

This small well drilling machine uses a full automatic screw thread rod change method. The compact size allows it to fit in a pickup truck. The diesel engine delivers enough power to drill through soil, clay, and gravel. Some models also support electric motors for quieter operation.

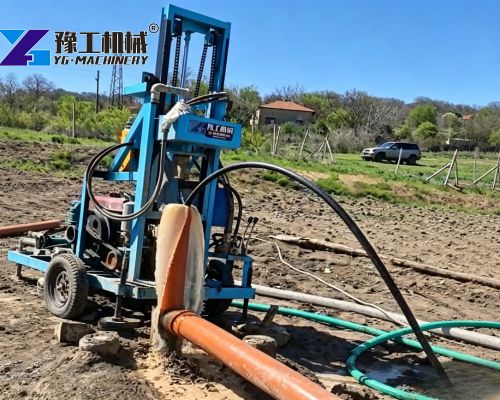

How the Machine Works
Understanding the working principle helps you operate the portable borewell machine correctly. The process is straightforward.
- Power starts the rotation. The diesel engine or motor turns the drill bit at a steady speed.
- Feed force pushes down. The hydraulic system applies downward pressure to help the bit cut through the ground.
- Drilling fluid cleans the hole. Mud or water flows into the borehole to cool the bit and carry rock cuttings to the surface.
- Drill rods extend the depth. When the rig reaches the end of a rod, the operator adds another section. This continues until the target depth is reached.
- The casing stabilizes the well. A steel pipe is placed inside the hole to prevent collapse and keep water clean.
This mini water well drilling machine uses rotary cutting and impact crushing to break rock and soil. The mud pump works continuously to remove debris. With practice, a two-person team can drill a well in a few days.
Main Advantages of Using This Equipment
Switching to a small well drilling machine offers clear benefits for your project. Here are the top reasons to choose this type of rig.
Cost-Effective Investment
The purchase price of a mini water well drilling machine is much lower than large commercial rigs. Operating costs are also reduced because it uses less fuel and requires fewer workers. Many farmers find that drilling their own wells saves long-term water expenses.
High Mobility
One major advantage is portability. The machine weighs around 200 kg and can be towed by a standard vehicle or carried in a truck bed. This lets you reach remote areas, hillsides, and tight spaces where larger equipment cannot go.
Easy Operation
The controls are simple to learn. Most users become comfortable with the machine after a short training session. You do not need a highly specialized operator. This makes the portable borewell machine a great option for individual homeowners and small contractors.
Versatile Applications
This rig is not only for water wells. It can also handle soil testing, geothermal drilling, and small piling work for sheds or houses. This flexibility adds value to your investment.
Low Maintenance
Built with fewer moving parts, this portable borewell machine is easy to service. Regular oil changes and bit inspections are usually enough to keep it running smoothly. This reduces downtime and repair costs.
Check YG Mini Drilling Machine Availability
Where to Use a Mini Water Well Drilling Machine
This equipment serves many practical purposes across different sectors. Here are the most common application areas.
Agricultural Irrigation
Farmers use this mini water well drilling machine to access water for crops. Reliable irrigation increases yields and reduces dependence on rainfall. For example, a strawberry farmer in California used a YG machine to drill several wells on his property, which allowed him to expand his growing area.
Rural Homes
Many rural houses are not connected to municipal water systems. A small well drilling machine lets homeowners drill a private well in their backyard. This provides clean, fresh water at a much lower cost than pipeline installation. One family in Texas reported significant savings after drilling their own well.
Emergency Water Supply
Disasters such as droughts or floods can damage public water systems. A portable borewell machine can quickly drill new wells to supply emergency water to affected communities. This fast response helps save lives during crises.
Small Construction Projects
Building sites often need water for concrete mixing and dust control. This rig can supply water on-site without relying on tanker trucks. It also works for small piling tasks for farmhouses or light industrial buildings.
Comparison with Larger Rigs
| Feature | Mini Water Well Drilling Machine | Large Commercial Rig |
| Weight | ~200 kg | Several tons |
| Depth | Up to 200m | 300m+ |
| Price | Low | Very High |
| Mobility | Easy to transport | Requires heavy transport |
| Crew | 2 people | 4+ people |
| Fuel Use | Low | High |
This table clearly shows why the mini water well drilling machine is a popular choice for smaller projects and individual buyers.
Common Ground Conditions
The portable borewell machine can work in various geological settings. Here is a quick guide.
- Sandy Soil: Drills fast. Use high rotation speed and light feed pressure.
- Clay: Requires steady pressure. Water flush helps prevent bit clogging.
- Gravel: Use a specialized bit. Slow down rotation to avoid damage.
- Soft Rock: Diamond or carbide bits work best. Reduce feed force to prevent overheating.
Understanding your site conditions helps you set up the mini water well drilling machine correctly and achieve good results.
Frequently Asked Questions (FAQ)
Q1: What is the maximum depth for a mini water well drilling machine?
Most mini rigs, like the YG-240, can drill up to 200 meters deep. The actual depth depends on the soil type and the drill bit used.
Q2: Can one person operate this machine alone?
While one person can run the controls, a two-person team is recommended for safety and efficiency. One operator handles the machine, while the other manages rods and water flow.
Q3: How much does a typical mini water well drilling machine weigh?
The YG-240 model weighs around 200 kg. This is light enough to be transported by a pickup truck or a small trailer.

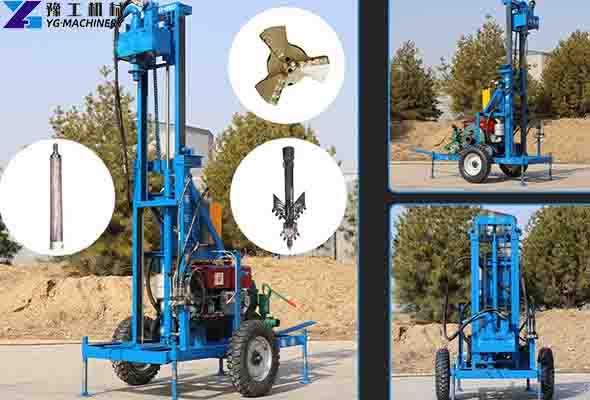

Q4: What types of drill bits can I use with a portable borewell machine?
You can use various bits including diamond, alloy, and carbide bits. The choice depends on the ground conditions you are drilling through.
Q5: Is training required to use this small well drilling machine?
Basic training is helpful but not complicated. Most users learn quickly through video tutorials or onsite guidance from the supplier. YG provides remote training support for buyers.
Download YG Product Brochure & Price List
Contact YG for Your Mini Water Well Drilling Machine
Choosing the right mini water well drilling machine is important for your project’s success. YG is a professional factory with years of experience in manufacturing drilling equipment. Our machines are built with high-quality steel and strong engines to last through tough jobs. We offer competitive factory-direct prices and reliable after-sales support. Whether you need a well for your farm, home, or business, we have a model that fits your needs.
Our team can help you with:
- Model selection based on your ground conditions
- Shipping arrangements to your port
- Spare parts supply and maintenance guidance
- Warranty and after-sales service
