YG Machinery supplies a full portfolio of high‑performance paper industry processing and pulp molding equipment for paper mills, packaging plants, recycling factories and poultry farms. Whether you need to slit large jumbo paper rolls into finished narrow rolls for printing and converting, or turn waste paper into biodegradable molded pulp egg trays, our paper‑series machines deliver stable output, low operating cost and long service life. From high‑speed slitting‑rewinding production to eco‑friendly waste‑paper recycling lines, YG equipment helps customers cut waste, reduce manpower and boost overall profit margins.

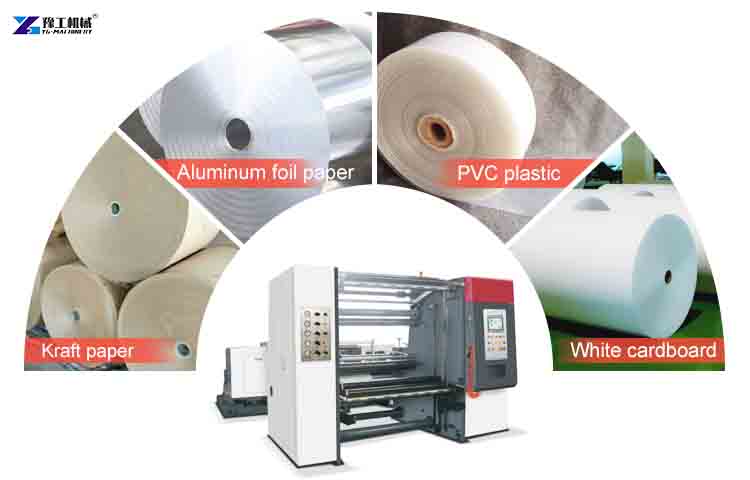

Paper Slitting and Rewinding Machine – YG‑1300 / 1600 /1800 Series
The YG paper slitting and rewinding machine cuts large jumbo parent paper rolls into required narrow widths and rewinds them into neat, compact finished rolls ready for packaging and further conversion. It acts as the key connecting equipment between large‑scale paper mill production and downstream printer, converter and packaging plant applications. This unit integrates unwinding, web guiding, precision slitting, closed‑loop tension control and rewinding in one continuous workflow.
Supported materials cover kraft paper, thermal paper, coated paper, carbonless paper, paperboard, as well as BOPP/PET/PVC film, aluminum foil, silicone release paper and self‑adhesive label stock. Equipped with PLC touch‑screen control, servo‑driven blade positioning and magnetic powder brake tension regulation, automatic models can reach processing speed up to 350 m/min, minimizing material waste and operator‑dependent quality fluctuation. Compared with traditional manual‑adjust slitting equipment, the automatic version greatly shortens job‑change time and delivers consistent roll hardness and straight edges。
Key specs: Max working width 1300‑1800mm | Max unwinding diameter 1400mm | Min slitting width 30mm | Max rewinding diameter 1000mm | Speed ≤350 m/min | 380V/50Hz power supply | Support shear cutting / razor slitting | PLC automatic recipe memory | OEM customization available
Discover Paper Slitting Rewinding Machine →
Contact a YG engineer to Discuss Your Needs One-on-One

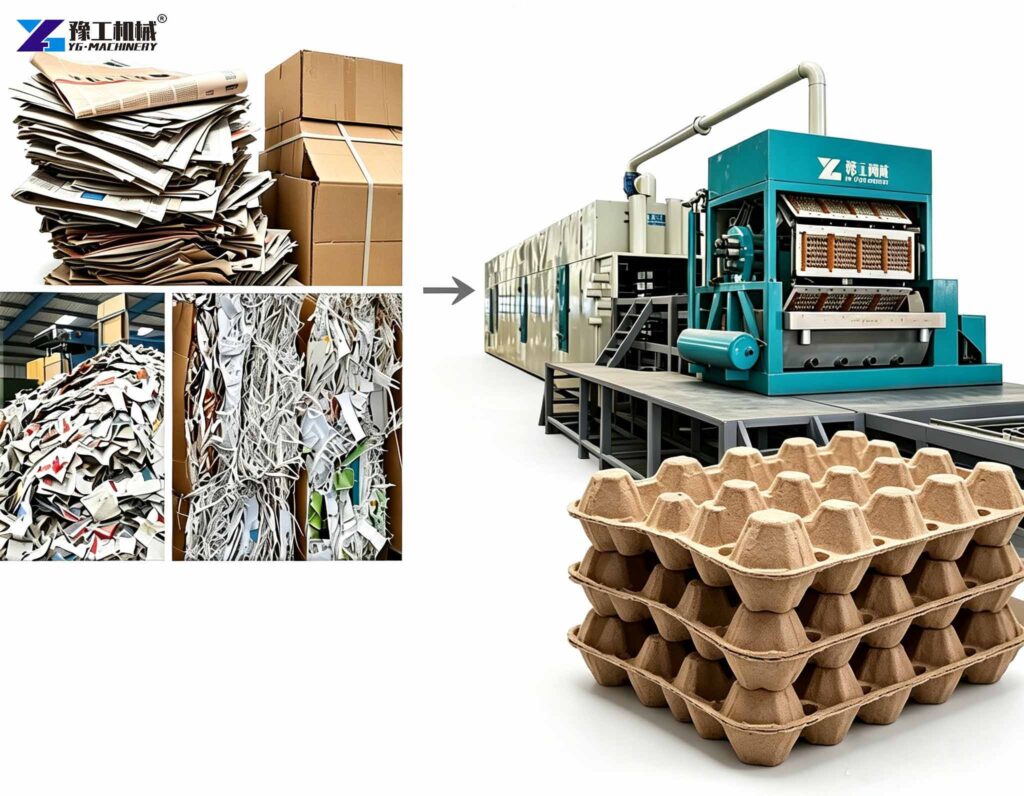

Egg Crate Making Machine – YG‑1500 to YG‑7000 Series
YG egg crate making machine adopts mature pulp molding technology, turning low‑cost waste paper (newspaper, carton, office waste paper) into biodegradable egg trays, egg cartons, fruit trays, seedling trays and custom industrial buffer packaging. The full production workflow includes waste‑paper pulping, vacuum forming, mold transfer and drying. All parts contacting pulp and water adopt 304 stainless steel for anti‑corrosion and 10+‑year service life.
Available in manual, semi‑automatic and fully‑automatic rotary forming lines, hourly output ranges from 1500pcs up to 7000pcs. Multiple drying solutions are optional: natural sun drying, brick kiln drying, trolley drying and high‑speed multi‑layer metal hot‑air drying tunnel (15‑20‑min drying cycle). Simply replacing molds allows quick switching between different molded‑pulp products, bringing flexible revenue streams for poultry farms, recycling plants and packaging manufacturers. The whole line only needs 3‑8 operators per shift, featuring low raw‑material cost and attractive return on investment。
Key specs: Capacity:1500‑7000 pcs/h | Power range:38‑120 kW | Waste‑paper consumption:120‑480 kg/h | Water consumption:240‑960 kg/h | Rotary forming system | 304 stainless steel wetted components | Multiple drying options | Quick mold replacement | Free factory layout drawing support
Explore Egg Crate Making Machine →
Contact a YG engineer to Discuss Your Needs One-on-One
✅ Complete Paper‑industry solutions from YG Machinery
From high‑speed paper slitting & rewinding to waste‑paper recycling pulp molding production lines, YG provides durable paper‑processing machinery, customized configuration, factory pre‑testing, installation guidance, operator training and full after‑sales spare‑parts support. Contact our engineering team for material test suggestion, site layout planning and project profit analysis.
Contact YG engineer to discuss your paper‑processing project one‑on‑one
