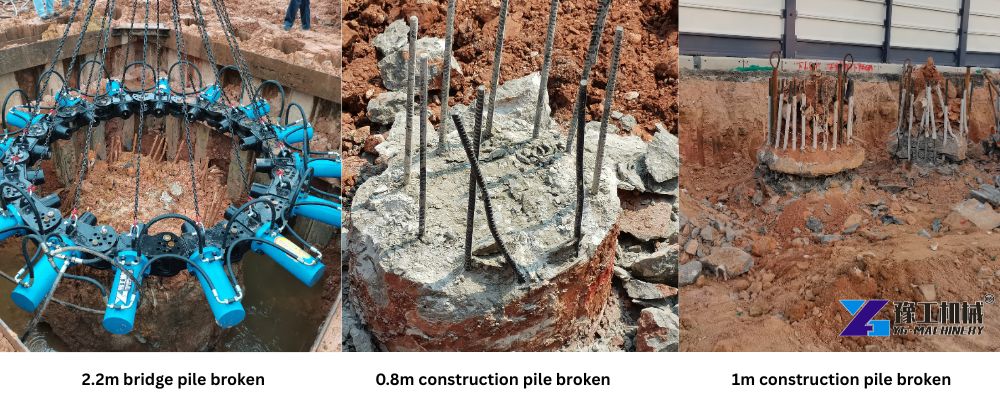

A pile chipping machine is hydraulic equipment used to remove the top part of concrete piles after driving. This process is essential in foundation construction. The machine breaks the concrete head cleanly while preserving the steel reinforcement bars inside. Unlike manual jackhammer methods, this equipment delivers consistent results in minutes per pile.

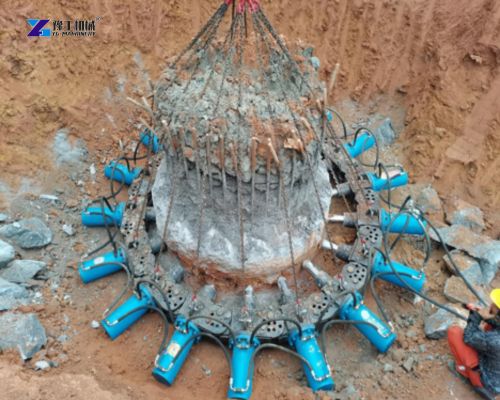

This machine is also commonly referred to as a concrete pile cutting machine or pile head breaking machine. These terms describe the same function: precise removal of excess concrete from pile tops to prepare for foundation connections.
YG Pile Chipping Machine Configuration
| Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Combination of the total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
| Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
Inquire Now for Your Specific Pile Diameter
Hydraulic Pile Cutter Components
Understanding the structure helps you evaluate quality and durability. A hydraulic pile cutter consists of several key components that work together:
- Hydraulic cylinders: Provide the pushing force. Each cylinder generates up to 300KN of thrust. High-quality cylinders have hardened steel rods and double seals to prevent leaks.
- Steel chisels: Direct contact points that break concrete. Made from wear-resistant alloy steel. Location pin diameter is Φ35mm for secure positioning.
- Modular frame: The main body that holds all components. Constructed from high-strength structural steel. Modules connect with heavy-duty pins and bolts. This design allows size adjustment.
- Connection bracket: Links the machine to the excavator arm. Universal brackets fit most 20-40 ton excavators. Quick-connect systems speed up attachment changes.
- Hydraulic hoses and fittings: Transfer power from excavator to cylinders. Reinforced rubber hoses withstand high pressure. Quick-release couplings prevent fluid loss during connection.
The quality of these components directly affects performance. Reliable manufacturers use certified materials and test each part before assembly.
Inquire Now for Your Specific Pile Diameter
Construction Applications of Pile Chipping Machine
Pile chipping machines are used worldwide in various construction sectors. Understanding these applications helps you see the machine’s versatility.
Infrastructure projects:
- Highway overpass foundations
- Railway bridge piers
- Airport runway supports
- Tunnel entrance structures
Building construction:
- High-rise building foundations
- Commercial complex pile caps
- Industrial facility floors
- Residential tower basements
Marine and waterfront:
- Port dock foundations
- Pier and wharf structures
- Seawall support piles
- Bridge crossing waterways
Energy sector:
- Wind turbine foundations
- Power plant structures
- Transmission tower bases
Each application has specific requirements. Marine projects need corrosion-resistant machines. Wind turbine foundations use large diameter piles requiring more modules. The pile chipping machine adapts to all these conditions.
Construction companies in Southeast Asia frequently use these machines for high-rise projects. Middle Eastern contractors use them for infrastructure development. European companies appreciate the low noise and precision. The machine has proven effective across different climates and conditions.
5 Factors Affecting Breaking Speed
Breaking speed directly impacts project schedules. Several factors determine how fast a concrete pile cutting machine works:
- Concrete strength: Higher MPa concrete takes longer to break. Standard 30-40 MPa concrete breaks quickly. High-strength 60+ MPa concrete may need multiple passes.
- Pile diameter: Larger piles have more concrete volume. A 2500mm pile takes longer than a 400mm pile. The module count increases proportionally.
- Hydraulic flow rate: Excavator hydraulic output affects cylinder speed. The machine requires a minimum of 20L/min. Higher flow rates mean faster cylinder movement. Check your excavator’s flow rate before purchase.
- Chisel condition: Worn chisels break concrete less efficiently. Regular inspection and replacement maintain optimal speed. Sharp chisels cut through concrete faster.
- Operator technique: Proper positioning and pressure control improve speed. Experienced operators finish piles in 5-7 minutes. New operators may take 10-12 minutes.
Most pile head breaking machines complete a standard 800mm pile in under 8 minutes. This includes positioning, breaking, and moving to the next pile. Projects with hundreds of piles benefit significantly from this efficiency.
Pile Chipping Machine vs. Manual Breaking: A Side-by-Side Comparison
Construction site managers often ask whether to rent a pile chipping machine or continue with manual methods. Here is a direct comparison based on real job site data.
| Factor | Pile Chipping Machine | Manual Jackhammer Team |
| Time per 800mm pile | 6-8 minutes | 55-70 minutes |
| Crew size | 2 persons | 5 persons |
| Daily output | 60-80 piles | 8-12 piles |
| Rebar damage rate | Less than 1% | 10-15% |
| Worker fatigue | Low | Very high |
| Consistent cut quality | Yes | No, varies by worker |
| Noise level | 85-90 dB | 105-110 dB |
| Fuel consumption | 8-12 L per shift | 0 (electric) or 15-20 L |
The pile chipping machine clearly outperforms manual methods in speed and quality. For a project requiring 500 piles, the machine finishes in 6-8 days. The manual team needs 42-63 days. This time saving alone justifies the equipment investment.
Additionally, rebar damage is costly to repair. Bent or cut bars require welding or replacement. This adds labor and material costs. The concrete pile cutting machine prevents this problem almost entirely.
Request a Free Project Time Estimate
Selecting the Right Concrete Pile Cutting Machine for Your Job Site
Choosing the correct concrete pile cutting machine requires careful evaluation. Here are the key selection criteria to consider based on the actual product specifications:
1. Project pile specifications:
- Maximum and minimum pile diameters (range: 400mm to 2500mm)
- Number of piles to be processed
- Concrete strength rating
- Pile type (round, square, or H-beam)
2. Available excavator fleet:
- Excavator weight class (20-30T for 4-9 modules, 30-40T for 10-13 modules)
- Hydraulic flow rate (minimum 20L/min required)
- Operating pressure compatibility
- Auxiliary hydraulic circuit availability
3. Power source options:
- Excavator hydraulic system
- Standalone hydraulic pump station
- Check which option fits your site conditions
4. Site conditions:
- Working space around piles
- Access for excavator positioning
- Weather conditions (rain, extreme heat)
- Ground stability for machine support
5. Budget considerations:
- Purchase price vs. rental options
- Spare parts availability and cost
- Maintenance requirements
- Resale value after project completion
The module selection is straightforward. For a 400-600mm pile, choose 4 modules weighing 1,600kg. For a 1500-1650mm pile, choose 13 modules weighing 4,290kg. The table above provides complete selection guidance.
For example, a project with 800mm round piles and a 25-ton excavator needs 8 modules weighing 2,640kg. This configuration breaks 60-70 piles per day under normal conditions. If your daily target is 100 piles, consider upgrading to a 30-ton excavator with higher flow rate.
Get Your Machine Configuration Recommendation
Cost-Benefit Analysis: Machine vs. Manual Breaking
Construction managers need to justify equipment investments. Here is a realistic cost comparison between using a pile chipping machine and manual jackhammer methods.
Manual breaking costs (per 100 piles, 800mm diameter):
| Cost Item | Amount |
| Workers needed | 5 workers |
| Time per pile | 60 minutes |
| Total labor hours | 100 hours |
| Labor cost (assume $25/hour) | $2,500 |
| Jackhammer rental | $300 |
| Total cost | $2,800 |
Pile chipping machine costs (per 100 piles):
| Cost Item | Amount |
| Operators needed | 2 (operator + assistant) |
| Time per pile | 8 minutes |
| Total labor hours | 13.3 hours |
| Labor cost (assume $25/hour) | $333 |
| Machine rental or depreciation | $800 |
| Fuel and maintenance | $200 |
| Total cost | $1,333 |
The pile chipping machine saves about $1,467 per 100 piles. For a project with 1,000 piles, savings exceed $14,000. The machine also finishes the job in 1-2 days instead of 2-3 weeks. This faster schedule reduces overall project costs.
Additionally, the concrete pile cutting machine produces better quality cuts. This reduces rework. It also eliminates rebar damage, which can cause structural issues. These quality benefits are hard to quantify but very important.
Request a Custom Cost-Saving Calculation for Your Project
Common Issues and Solutions When Using a Pile Head Breaking Machine
Even with proper operation, you may encounter some issues. Here are common problems and how to solve them.
Issue 1: Chisels not penetrating concrete
- Cause: Concrete strength is higher than expected
- Solution: Increase hydraulic pressure gradually
- Alternative: Make multiple passes at lower pressure
Issue 2: Uneven break line
- Cause: Machine not centered on pile
- Solution: Reposition the machine carefully
- Check: Ensure all modules are aligned properly
Issue 3: Hydraulic cylinder slow operation
- Cause: Hydraulic flow below minimum 20L/min
- Solution: Check excavator flow rate settings
- Check: Inspect hydraulic filters for blockage
Issue 4: Excessive wear on chisels
- Cause: Chisel material too soft for concrete type
- Solution: Upgrade to harder alloy chisels
- Check: Adjust break pressure to reduce impact
Issue 5: Frame pins becoming loose
- Cause: Normal wear from vibration
- Solution: Tighten pins daily before operation
- Check: Replace bushing when worn
Issue 6: Machine not closing fully around pile
- Cause: Debris blocking the frame or pile diameter mismatch
- Solution: Clean frame opening area
- Check: Verify pile diameter matches your module configuration
Most issues are preventable with daily maintenance. A 5-minute inspection each morning catches most problems early. This keeps your pile head breaking machine running smoothly.
