Thermoplastic Striping Equipment: Durable Road Markings That Last 3-5 Years
What Is Thermoplastic Striping Equipment?
Thermoplastic striping equipment applies hot-melt road markings. Unlike cold paint, it does not use liquid paint. Instead, it melts solid thermoplastic powder at 180-210°C and applies it to the road surface. The hot material bonds with the pavement and dries in just 3-5 minutes. Traffic can return to the road quickly.

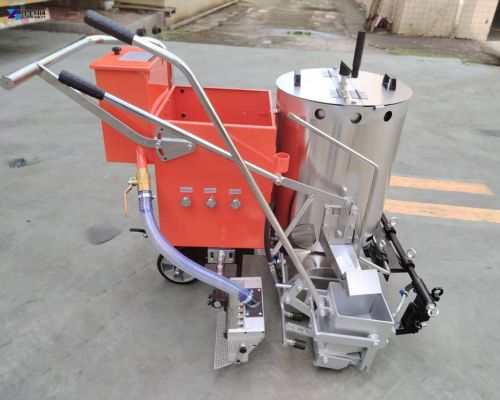

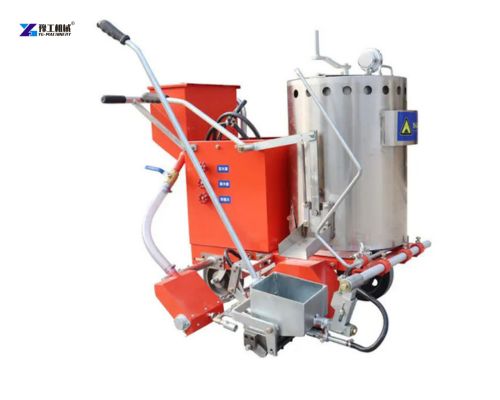

A thermoplastic striping machine typically includes a melting kettle, a marking shoe or spray gun, and a glass bead system. The kettle heats and melts the thermoplastic material. The marking shoe lays the molten material onto the road in clean lines. The glass bead system drops reflective beads onto the wet line for nighttime visibility.
Key components include:
Stainless steel melting kettle (100-135kg capacity)
Liquefied gas heating system
Marking shoe with tungsten carbide floor knife
Glass bead hopper (15-40kg capacity)
Rear wheel alignment system for straight lines
Key Specifications of Thermoplastic Striping Equipment
Understanding the specifications helps you choose the right model. Below are typical parameters based on common configurations:
| Parameter | Hand-Push Model | Self-Propelled Model |
| Paint Kettle Capacity | 100-120kg | 135-200kg |
| Glass Bead Capacity | 15-26kg | 25-40kg |
| Heating Type | Liquefied gas | Liquefied gas or diesel |
| Heating Time | 20-30 minutes | 20-30 minutes |
| Marking Speed | 0-4m/min | 0-20km/h |
| Marking Width | 50-450mm (adjustable) | 50-450mm (adjustable) |
| Marking Thickness | 1.2-3mm | 1.2-3mm |
| Machine Weight | 120-220kg | 570-980kg |
| Climbing Capacity | 15° | 30° |
Both models use the same heating principle: liquefied gas heats the kettle to melt thermoplastic material. The main difference is the drive system. Hand-push models are lighter and cheaper. Self-propelled models cover more area faster.
[询盘按钮1: Get a Quote for Your Project Size]
Main Applications of the Thermoplastic Line Marking Machine
The thermoplastic line marking machine works on many types of roads and surfaces:
1. Highways and Expressways
High-traffic roads need long-lasting markings. Thermoplastic lasts 3-5 years, much longer than cold paint. The fast drying time (3-5 minutes) reduces traffic disruption.
2. Urban Roads and Intersections
Cities need clear lane lines and pedestrian crossings. The adjustable marking width (50-450mm) handles different line sizes. The glass bead system ensures good nighttime visibility.
3. Parking Lots
Mark parking spaces, directional arrows, and no-parking zones. The hand-push model works well in tight spaces.
4. Airports and Runways
Runways need highly visible markings. The thermoplastic road marking machine applies thick, durable lines that reflect well at night.
5. Factories and Warehouses
Mark internal traffic lanes and safety zones. The markings resist wear from forklifts and vehicles.
6. Schools and Playgrounds
Mark sports courts and pedestrian areas. The material is safe and non-toxic once applied.
[询盘按钮2: Request Price & Availability]
How to Choose the Best Thermoplastic Striping Equipment
Use this guide to select the right machine for your project:
1. Hand-Push or Self-Propelled?
Hand-push models: Best for small projects, parking lots, and tight spaces. Weight: 120-220kg. Lower cost.
Self-propelled models: Best for highways and large areas. Covers up to 20km/h. Higher output. Weight: 570-980kg.
2. Check Your Kettle Capacity
100-120kg kettle: Good for smaller jobs. Less frequent refilling than 50kg models.
135-200kg kettle: Best for large projects. More material means less downtime.
3. Consider Your Marking Width
Most machines offer 50-450mm adjustable width. Choose a model with the widths you need most. Some machines allow quick shoe changes for different widths.
4. Look for Glass Bead System
A good bead system applies beads evenly. This improves nighttime reflectivity. Look for adjustable bead flow control.
5. Check the Heating System
Liquefied gas is the most common heating method. It heats the kettle to 180-210°C. Some machines also offer diesel heating.
6. Consider Additional Features
Rear wheel alignment: Keeps lines straight
Vibration system: For raised rumble lines
PLC control: For automated pattern marking (dashed lines, arrows)
[询盘按钮3: Download Full Specifications]
Thermoplastic vs. Cold Paint: Which One to Use?
Many contractors ask about the difference. Here is a clear comparison:
| Factor | Thermoplastic | Cold Paint |
| Drying Time | 3-5 minutes | 30-60 minutes |
| Line Life | 3-5 years | 6-12 months |
| Line Thickness | 1.2-3mm | 0.2-0.4mm |
| Application Temperature | 180-210°C (heating needed) | Room temperature |
| Material Form | Solid powder | Liquid |
| Equipment Cost | Higher | Lower |
| Best For | Highways, high-traffic roads | Parking lots, low-traffic roads |
Choose thermoplastic if: You work on highways, busy urban roads, or any project needing long-lasting, reflective markings.
Choose cold paint if: You work on parking lots, temporary markings, or small jobs with a smaller budget.
Features That Make Thermoplastic Striping Equipment Reliable
The thermoplastic striping equipment offers several practical features:
Quick Heating: The gas burner heats the kettle to 180-210°C within 20-30 minutes. This gets you working faster.
Strong Thermal Bond: Hot thermoplastic melts into the road surface. This creates a strong bond that resists traffic wear.
Adjustable Marking Thickness: Set the line thickness from 1.2mm to 3mm. Thicker lines last longer.
Synchronized Glass Bead Dispenser: The bead system drops reflective glass beads onto the wet line automatically. This improves nighttime visibility.
Precise Line Guidance: Rear wheel alignment systems help keep lines straight and even.
Easy Cleaning: The tungsten carbide floor knife resists wear and cleans easily after use.
Low Maintenance: Simple design with few moving parts. Regular cleaning and occasional part replacement keep it running.
Why Choose YG’s Thermoplastic Striping Equipment?
We manufacture and sell directly to customers. No middlemen.
What we offer:
1. Large Capacity Kettles
Our machines hold 100-135kg of thermoplastic material. You spend less time refilling and more time marking.
2. High-Quality Materials
We use stainless steel for the kettle and tungsten carbide for the floor knife. These materials resist wear and last longer.
3. Precise Temperature Control
Our gas heating system maintains consistent temperature. This ensures smooth material flow and good line quality.
4. 50-450mm Adjustable Width
Switch between different line widths easily. Great for marking lanes, crosswalks, and parking spaces with one machine.
5. CE Certified
Our machines meet international safety standards.
6. One-Year Warranty
We cover all core components for one year. Our after-sales team answers questions within 24 hours.
7. Fast Delivery
In-stock models ship within 7 days. We ship from our factory directly to your port.
[询盘按钮4: Ask About Custom Options]
Operation and Maintenance Tips
Follow these tips to keep your machine running well:
Before Each Use
Check the gas supply and connections
Fill the kettle with thermoplastic powder
Check the glass bead hopper
Test the burner and heating system
During Operation
Monitor the material temperature (180-210°C)
Keep the material stirred to prevent scorching
Adjust the marking shoe height for even thickness
After Each Use
Clean the marking shoe and floor knife
Empty and clean the kettle if not using again soon
Store the machine in a dry place
Regular Maintenance
Replace worn floor knives
Clean the gas burner nozzles
Lubricate moving parts
Check glass bead dispenser for blockages
Proper maintenance extends the life of your thermoplastic road marking machine price value and keeps it performing well.
