Fabric Roll Slitting Machine

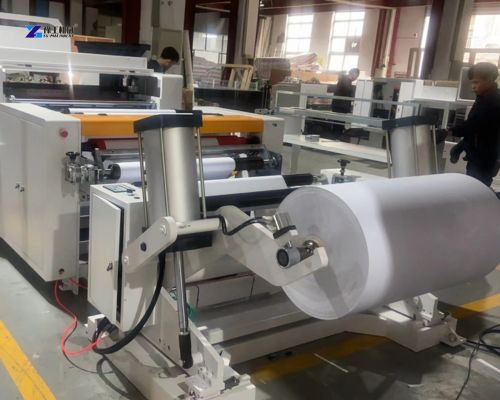

A fabric roll slitting machine is the workhorse of many textile production lines. Its main job is to take large, wide rolls of fabric and cut them into smaller, narrower rolls. This process is known as slitting. The machine unrolls the big “mother roll,” passes it through sharp blades, and then rewinds the cut pieces onto new cores. The result is a set of smaller rolls ready for the next stage of production, whether that is making clothes, bags, or other textile products. The precision of the fabric roll slitting machine ensures that every strip is the exact width required, minimizing waste. If you need reliable slitting solutions tailored to your requirements, contact YG for expert guidance and high-performance equipment.

Get Free Selection Advice

YG Fabric Roll Slitting Machine  Parameters -OEM Support

Model	YG- 1300	YG- 1600	YG- 1800
Max width	1300mm	1600mm	1800mm
Max Diameter for unwinding	￠1400mm	￠1400mm	￠1400mm
Min width of slitting	30mm	30mm	30mm
Max Diameter of rewinding	￠1000mm	￠1000mm	￠1000mm
Speed	≤350m/min	≤350m/min	≤350m/min
Total Power	24kw	26kw	30kw
Power supply	380V/50hz	380V/50hz	380V/50hz
Weight	4000kg	4500kg	5500kg
Overall dimension(LxWxH)	3300x3150x1930(mm)	3300x3450x1930(mm)	3300x3650x

Free Quote

Fabric Cutting Types and Methods

Understanding the different cutting methods is key to choosing the right machine for your needs. A modern fabric slitting machine can handle various techniques.

• Roll Cutting with Knives: This is the most common method. The machine uses straight blades or circular knives to cut the fabric as it moves through the rollers . It is efficient and clean for many fabric types. This includes a cloth slitter that uses razor blades for lightweight materials.
• Hot Cutting (Thermal Cutting): This method uses heat to cut and seal the edges of synthetic fabrics at the same time. It prevents the edges from fraying . This is a popular feature for a textile slitting machine processing materials like nylon or polyester.
• Crush Cut (Pressure Cut): This method uses a hard steel roller and rotating knives. The blade presses against the roller to make a clean cut. It is a great way to cut tough materials or if you need high accuracy .
• Slitting Operations and Bias Cutting: The machine can perform straight slitting. Some advanced models can also cut fabric on the bias (at a 45-degree angle), which is important for making items like elastic tape or certain types of garment trims.

Customized for Your Cutting Method

How to Use a Fabric Roll Slitting Machine

Operating a fabric roll slitting machine is a straightforward process, especially with modern automated controls. The steps typically involve:

1. Loading the Material: The large fabric roll is placed on the unwinding station at the back of the machine. It is held securely by a shaft or chuck.
2. Threading the Web: The operator pulls the fabric through the machine’s rollers and over the cutting blades, then attaches it to the rewinding cores at the front.
3. Setting Parameters: The operator uses a control panel (often a touch screen) to set the required slitting width, speed, and length.
4. Starting the Machine: Once all settings are confirmed, the machine starts automatically. The material unwinds, passes through the cutter station, and is slit into strips.
5. Rewinding: The newly cut strips are wound onto individual cores to make finished rolls . Many machines have features to control the tension to ensure the rolls are tight and even.

Why Choose the YG Fabric Roll Slitting Machine?

Choosing the right equipment is a major decision. The YG fabric roll slitting machine stands out as a reliable and efficient solution for textile manufacturers.

• High Precision: YG machines are engineered for accuracy. They can achieve a slitting precision of ±0.2mm. This level of accuracy reduces material waste and ensures the final product meets strict quality standards.
• Versatility: A YG cloth slitter can handle a wide variety of materials. Whether you are processing non-woven fabrics, woven cotton, or synthetic blends, the machine provides consistent performance. It can handle jumbo rolls up to 1800mm wide or more.
• Durability and Speed: Built with a robust steel frame and high-quality components, YG machines are designed for continuous, heavy-duty operation. They can operate at high speeds (up to 500m/min) to maximize your production output.
• Advanced Control: The intelligent control systems simplify operation. Features like the PLC touch screen let operators save settings for different jobs. This makes switching between products quick and easy.

Download YG Brochure & Tech Specs

4 Features for YG Fabric Slitting Machine Production

Beyond basic slitting, modern fabric roll slitting machines offer advanced features to improve efficiency and quality. Key features include:

• Automatic Tension Control: This system keeps the fabric tight and smooth as it moves through the machine. It prevents wrinkles and ensures even winding.
• Edge Guide Systems (EPC): Photoelectric sensors track the edge of the fabric and adjust it automatically. This ensures the material stays aligned for accurate cutting.

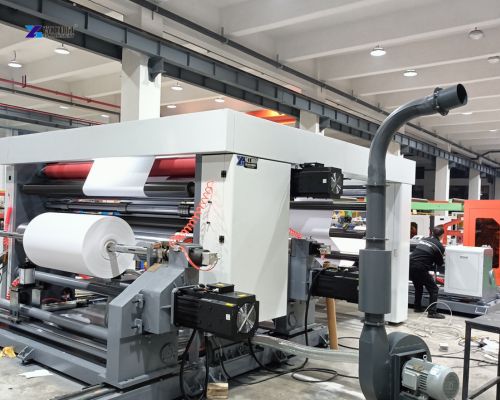

• Dust Removal: Some machines include a blower to remove dust and loose fibers created during the slitting process. This keeps the work area and the final product clean.
• Dual Rewind Shafts: This design allows one roll to be finished while another is being loaded. This minimizes downtime and keeps the production line moving.

Book a Live Demo

Textile Slitting Machine Application Scenarios

The fabric roll slitting machine is crucial in many industries. Here are a few common uses:

1. Apparel Manufacturing: Cutting large rolls of cotton, denim, or synthetic fabric into strips for making collars, cuffs, or waistbands.

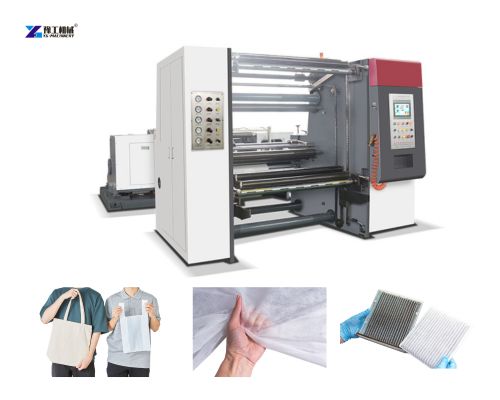

2. Technical Textiles: Processing non-woven materials for products like diapers, wipes, and medical gowns.
3. Filter Production: Slitting specialized filter materials used in air and liquid filtration systems.
4. Automotive and Furniture: Cutting fabrics for car interiors, upholstery, and mattress covers.

Get a Solution for Your Industry

Frequently Asked Questions About Fabric Slitting Machines

1. What materials can a fabric roll slitting machine process?
   It can process a wide range, including woven fabrics, non-woven fabrics, synthetic materials, cotton, blends, and some technical textiles like fiberglass.
2. What is the typical slitting accuracy?
   High-quality machines, like those from YG, offer high precision, typically around ±0.2mm . This ensures consistent width for all your rolls.
3. What is the difference between a fabric slitting machine and a cloth slitter?
   The terms are often used interchangeably. Generally, both refer to equipment designed to cut roll materials into narrower rolls.
4. How do I change the cutting width?
   With YG machines, you can change the width through the control panel. Some manual adjustments may be required to reposition the blades, but the process is designed to be quick.
