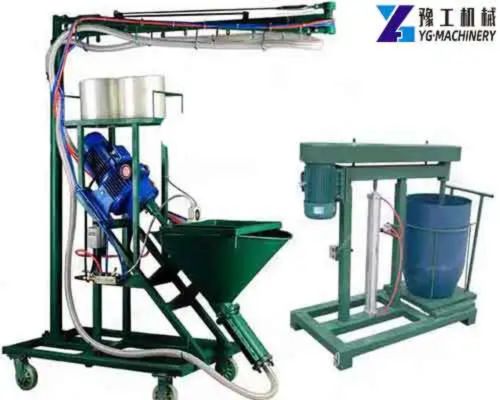

GRC Spray Machine

A GRC spray machine is a device that sprays glass fibre reinforced concrete (GRC) onto moulds or surfaces. GRC is a composite material made of cement, fine sand, water, and alkali-resistant glass fibres. This machine combines the slurry and fibres at the spray head, creating a strong and lightweight material. People use GRC for building facades, decorative panels, and architectural elements. If you need a machine that is efficient and easy to operate, the GRC spray machine from YG is your best choice. This equipment saves labour and improves production quality. Contact YG for more product details.

Talk to Our Sales Team About Your Needs

YG GRC Spray Machine Parameters-OEM Support

Knowing the numbers helps you choose the right model. YG builds its GRC spraying equipment with reliable parts. Our machines are tested before shipping to ensure stable performance.

Parameter	YG-GRC200	YG-GRC300
Slurry Output	10-15 kg/min	12-20 kg/min
Fibre Output	500-800 g/min	600-1000 g/min
Motor Power	2.2 kW	4.0 kW
Pump Type	Peristaltic Pump	Progressive Cavity Pump
Hopper Capacity	80 kg	150 kg
Machine Weight	180 kg	420 kg
Dimensions (LWH)	1000*600*1200 mm	1260*1460*1500 mm
Power Supply	380V, 3-phase	380V, 3-phase
Control System	PLC + Touchscreen	PLC + Touchscreen
Spray Gun Type	Concentric Spray Gun	Concentric + Facing Coat Gun

The GRC spray machine uses a peristaltic pump or progressive cavity pump. This design keeps the material flowing smoothly. The concrete spraying machine technology also applies to wet-mix shotcrete applications in tunnels and underground construction.

Compare Models and Find Your Match

How Does a GRC Spray Machine Work?

The working process is simple and direct. The machine feeds the cement slurry and glass fibres separately. They only mix at the spray head. This method keeps the fibres long and strong.

Here is the step-by-step process:

1. Material Loading: Workers put the cement, sand, and water mix into the hopper. A sieve filters out large particles to prevent blockages .
2. Pumping: The pump pushes the slurry through a hose to the spray gun. The pump speed can be adjusted to control output.
3. Fibre Chopping: The machine pulls glass fibre roving from a tray. A chopper mechanism cuts the fibres to the right length. Typical output is 600-1000 grams per minute.
4. Spraying: At the spray gun, compressed air atomises the slurry. The cut fibres are blown into the slurry cone. The mixture lands on the mould surface.
5. Compaction: Workers roll the sprayed GRC to remove air bubbles. This makes the material dense and strong.

The concentric spray gun is the most common type for GRC spraying equipment. It has a removable nozzle for easy cleaning. The spray air valve also acts as a remote start/stop switch for the machine.

See the GRC Spraying Process in Action

6 Features of GRC Spraying Equipment

Our GRC spraying equipment is designed for durability and ease of use. We have improved the design based on customer feedback.

• Peristaltic Pump Option: Our PS38i model uses a multi-roller low-pulse pump. There are no moving parts that touch the material. This keeps the fibres intact and reduces wear.
• Articulated Spray Boom: The boom supports the weight of the spray gun and hoses. It reduces operator fatigue. The boom can reach up to 3.5 metres. It also includes ceramic roving guides and a roving tray.
• Easy Cleaning: The pump and hoses are simple to clean. Quick-release couplings allow fast hose removal. A sponge ball can be pumped through the system to clean it thoroughly.
• IP66 Control Panel: All electrical parts are protected in a waterproof cabinet. This is important for wet construction sites. The panel includes colour-coded air gauges for easy monitoring.
• Low-Level Hopper: The hopper is only 80cm high. This makes loading easy, even with heavy materials. The hopper holds up to 150kg of slurry.
• Versatile Spray Guns: You get a concentric spray gun for hand-spray GRC and a facing coat gun for mist coats. These guns are lightweight and simple to dismantle for cleaning.

These features make the GRC spray machine a valuable tool for any factory or construction site.

Request a Product Demo Today

5 Applications of GRC Spray Machine

GRC is a versatile material. It is used in many industries because it is strong, lightweight, and can be shaped into many forms.

Common uses include:

• Building Facades: GRC panels are used on the outside of buildings. They are lighter than traditional concrete panels. This reduces the load on the building structure.
• Architectural Decoration: GRC can be moulded into columns, cornices, and ornamental shapes. It looks like natural stone but costs less.
• Landscape Products: Garden furniture, planters, and decorative rocks are made with GRC. The material is weather-resistant.
• Tunnels and Mining: Concrete spraying machines are also used for shotcrete in tunnels and underground mines. The equipment applies concrete to rock surfaces for support .
• Repair and Renovation: GRC is used to repair damaged concrete structures. It bonds well with old concrete and is quick to apply.

Whether you make building panels or repair tunnels, a GRC spray machine helps you work faster and better.

YG Concrete Spraying Machine International Case Studies

Our GRC spraying equipment is used by customers around the world. Here are two examples.

Case 1: Architectural Panel Factory in the UAE

A factory in Dubai makes GRC panels for luxury buildings. They used to make panels by hand, which was slow. They bought our YG-GRC300 spray station with an articulated boom. The machine sprays 18 kg of GRC per minute. The boom supports the heavy hoses, so workers are less tired. “Our production speed doubled after we got this machine. The panels are more consistent too,” said the factory manager. The machine paid for itself in 8 months.

Case 2: Underground Construction Project in Chile

A mining contractor in Chile needed a reliable concrete spraying machine for tunnel support. They chose our wet-mix spray system because it is simple to maintain. The peristaltic pump handles the abrasive material well. The machine runs 10 hours a day, 6 days a week. “This machine is tough. It handles the hard conditions underground without problems,” said the site supervisor. The contractor ordered a second machine after 6 months.

Tell Us Your Project – We Can Help

GRC Spray Machine Supplier– YG Machinery

YG is a manufacturer, not a trading company. We have been making GRC and concrete spraying machines for over 10 years. Our factory is 5,000 square metres. We have 30 workers and 5 engineers. Every machine is tested before delivery. You get factory-direct prices and direct technical support. No middleman means faster response and better quality control. We export to more than 40 countries. Our customers trust us for reliable machines and honest service.

Frequently Asked Questions (FAQ)

Q1: What materials does the GRC spray machine use?
The machine uses a cement-sand slurry and alkali-resistant glass fibre roving. The slurry is pumped from the hopper, and the fibre is chopped at the spray gun.

Q2: How much GRC can the machine spray per minute?
Our YG-GRC300 model sprays 12-20 kg of GRC per minute, depending on the pump speed and material consistency.

Q3: How do you clean the machine after use?
You can pump a sponge ball through the hose to clean it. The spray gun can be dismantled for easy cleaning. Quick-release couplings make hose removal fast.

Q4: What voltage does the machine need?
All our models run on 380V, 3-phase AC power. We can adjust the voltage for different countries.

Q5: Is the machine easy to operate?
Yes. The 7-inch touchscreen and PLC system control the whole process. Workers can learn to operate it quickly. The control panel includes clear instructions.
