South Africa’s mining and construction sectors demand reliable drilling equipment that can handle hard rock conditions, extreme temperatures, and continuous operation schedules. Contractors face increasing pressure to complete blast hole drilling, foundation work, and quarry operations faster while maintaining accuracy and controlling costs. Traditional drilling methods often struggle with penetration speed in dense rock formations, leading to project delays and increased operational expenses.

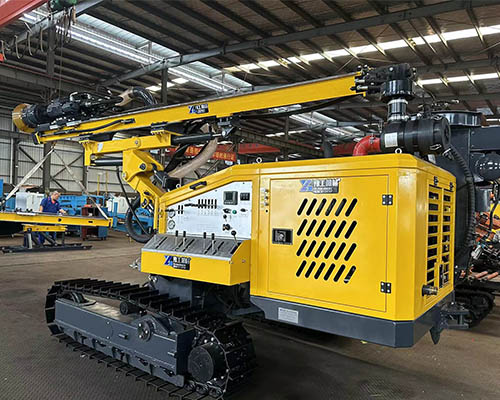

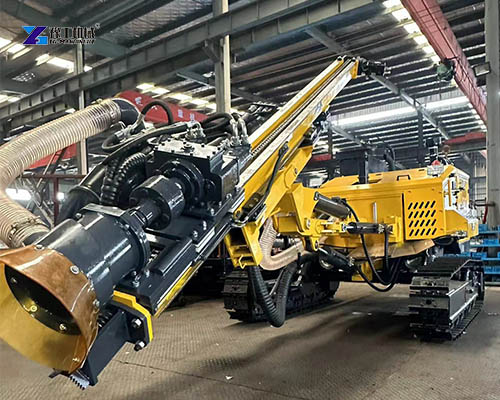

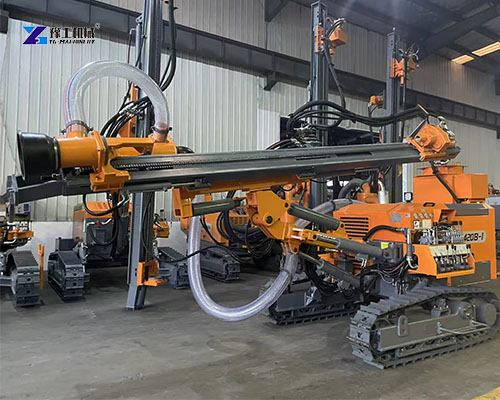

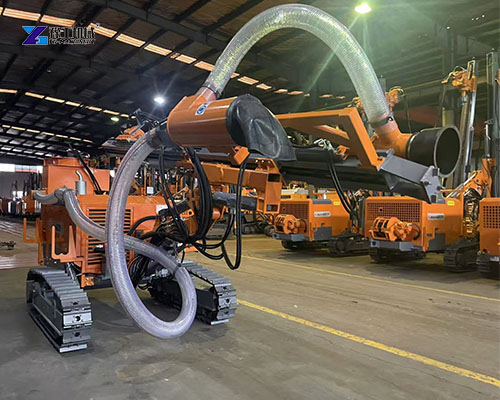

YG Machinery developed a comprehensive solution: down the hole drill rig series. This equipment delivers high impact energy directly to the drill bit through a down-the-hole hammer, providing superior penetration rates in hard rock compared to conventional top hammer systems. The YGS100A to YGS350 models offer hole diameters from 83mm to 165mm, with power configurations ranging from 33kw to 73.5kw. Crawler-mounted mobility ensures stable operation across uneven terrain.
Product Core Parameters
| Model | YGS100A | YGS153 | YGS180 | YGS300 | YGS350 |
| Total weight | 5.95T | 3.8T | 6.3T | 6.8T | 8T |
| Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.2/3.8km/h | 4km/h 2km/h |
| Diesel tank capacity | 85L | 70L | 85L | 85L | 225L |
| Shipping size | 6500*2100*2400mm | 4640*1980*2260mm | 6600*2110*2500mm | 6600*2220*2600mm | 7600*2350*2800mm |
| Drilling hole diameter | 90-146mm | 83-130mm | 90-146mm | 90-152mm | 90-165mm |
| Power configuration | YCD4R22T-80 | YC2108 33kw/2400rpm | YCD4R22T-80 55kw | YC4DK80-T302 | YC4DK100-T304 73.5kw/2200rpm |
| Highest horizontal hole height | 3.2m | 2.8m | 3.6m | 3.25m | 3.5m |
Case Study One: South Africa – Quarry Blast Hole Drilling
Client Background
A mid-sized quarry operation in South Africa’s Limpopo province produces aggregate for road construction and concrete manufacturing. The quarry extracts hard granite and diabase rock, requiring daily blast hole drilling to maintain production targets.
Client Challenge
The client faced several critical issues with their existing drilling equipment. Penetration rates in hard granite averaged only 6–8 meters per hour, well below project requirements. Frequent breakdowns caused unplanned downtime, delaying blast cycles and reducing aggregate output. The equipment’s fuel consumption also exceeded budget expectations. The client needed a more reliable down hole drilling equipment solution that could maintain consistent performance in hard rock while reducing operating costs.
YG Solution
YG recommended the YGS300 down the hole drill rig for this quarry application. This model features a 90–152mm hole diameter range suitable for production blast holes and a power configuration of YC4DK80-T302. The crawler undercarriage provides stable operation on uneven quarry floors, with walking speeds of 2.2/3.8km/h for efficient positioning between blast patterns. The 85L diesel tank supports full-day operation without refueling interruptions.
The down the hole drill rig delivers impact energy directly to the rock face through a DTH hammer, achieving significantly higher penetration rates than rotary methods. For this project, YG configured the rig with a 4-inch DTH hammer and 76mm drill rods, matching the client’s existing compressor specifications to minimize additional equipment investment. The highest horizontal hole height of 3.25m allows drilling at productive angles for bench blasting.
Client Feedback and Results
The quarry manager reported that the YG down the hole drill rig transformed their drilling operations. Penetration rates increased to 12–15 meters per hour in granite formations, nearly doubling previous performance. The rig maintained consistent operation throughout 10-hour shifts with no mechanical failures during the first three months. Fuel consumption decreased by approximately 15% compared to the older equipment. The improved drilling efficiency allowed the client to reduce blast cycle intervals, increasing aggregate production by 20%.
Case Study Two: Colombia – Road Construction Slope Stabilization Drilling
Client Background
A Colombian civil engineering contractor specializes in road construction and mountain infrastructure projects. The company secured a contract for slope stabilization drilling on a highway expansion project in the Andean region, where steep terrain and variable rock conditions create challenging working environments.
Client Challenge
The project required drilling 280 anchor holes for slope stabilization on a 2.3-kilometer section of mountain highway. The site featured mixed geology including fractured shale, sandstone, and occasional hard limestone intrusions. Hole diameters of 115mm with depths of 8–15 meters demanded a machine capable of maintaining straight boreholes through variable formations. The steep terrain limited equipment access, requiring a compact machine that could maneuver on narrow working benches. The client needed a reliable down the hole drill rig with good mobility and stable performance on slopes.
YG Solution
YG Machinery supplied the YGS180 down the hole drill rig for this slope stabilization project. This model offers a balanced combination of power and compact dimensions. The 90–146mm hole diameter range matches the project’s 115mm anchor hole requirement. The YCD4R22T-80 engine delivers 55kw of power with an 85L fuel tank for full-day operation. The shipping size of 6600×2110×2500mm allows transport on standard flatbed trucks to remote mountain sites.
The down the hole drill rig’s crawler tracks provide excellent stability on slopes up to 25 degrees, a critical feature for mountain highway work. The 3.6m highest horizontal hole height enables drilling at optimal angles for anchor installation. YG provided specialized drill rods and adaptors compatible with the client’s preferred anchor system, minimizing additional equipment purchases. On-site training covered slope positioning techniques and proper hole alignment methods for the dth rig machine.
Client Feedback and Results
The project engineer confirmed that the YG down the hole drill rig performed exceptionally well in challenging mountain conditions. The rig completed an average of 18 anchor holes per day, meeting the project’s tight schedule. The crawler system maintained stable operation on the steep working benches, with no slide incidents during the project. Borehole straightness remained within tolerance for anchor installation, even in fractured shale sections. The dth drilling machine price offered excellent value considering the reduced mobilization time and minimal maintenance requirements. The contractor completed the slope stabilization phase on schedule and has since recommended the equipment to other Colombian infrastructure contractors.
Application Areas
Beyond quarrying and slope stabilization, YG’s down the hole drill rig is widely applicable across multiple sectors:
Opencast Mining – Production blast hole drilling in coal, copper, and other mineral operations. The down the hole drill rig delivers consistent penetration rates for efficient bench blasting.
Water Well Drilling – The rig handles 90–165mm hole diameters suitable for water well installation in rural and agricultural areas.
Geotechnical Investigation – The equipment provides core drilling capability for site investigation and geological surveying, particularly in hard rock terrain.
Down The Hole Drill Rig for Sale – YG Machinery
YG Machinery offers reliable down the hole drill rig for sale designed for diverse project conditions in South Africa, Colombia, and worldwide. Our DTH drilling series provides solutions for quarrying, mining, slope stabilization, foundation work, and water well drilling.
If you are seeking a down the hole drill rig for your next project, contact YG Machinery today.
To help us recommend the right model, please provide:
- Project location and rock type (hardness f value)
- Required hole diameter and depth
- Expected daily production targets
- Available air compressor specifications
Our team provides:
- Transparent pricing with detailed quotations
- Technical support and model selection assistance
- OEM customization options
- Spare parts supply and after-sales guidance
Contact YG Machinery to discuss your drilling request!
