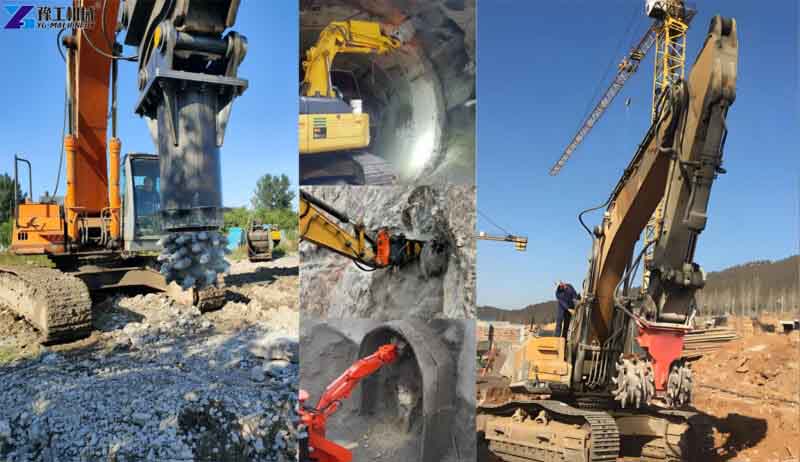

A drum cutter machine is a hydraulic attachment designed to cut rock, concrete, and other hard materials with rotating cutting teeth. It is widely used in channel construction, tunneling, demolition, quarrying, roadwork, and slot cutting. Compared with conventional excavation methods, it allows controlled material removal and accurate surface shaping. YG offers five models for 6–60 ton excavators. If you need a practical cutting solution for your project, explore the applications below and contact YG for product details.
Request Drum Cutter Machine Pricing
Drum Cutter Machine Parameters
Before exploring different applications, it helps to understand the specifications of a drum cutter excavator. YG provides five models designed for excavators of different sizes.
| Parameter | YG-X1 | YG-X2 | YG-Z1 | YG-Z2 | YG-D |
|---|---|---|---|---|---|
| Applicable Excavator | 6–9 T | 10–18 T | 20–27 T | 30–40 T | 45–60 T |
| Machine Weight | 450 kg | 550 kg | 1,100 kg | 1,250 kg | 2,450 kg |
| Milling Width | 420 mm | 650 mm | 850 mm | 950 mm | 1,150 mm |
| Milling Head Diameter | 340 mm | 450 mm | 560 mm | 660 mm | 850 mm |
| Number of Blade Heads | 40 | 56 | 64 | 64 | 60 |
| Recommended Speed | 95 r/min | 85 r/min | 78 r/min | 75 r/min | 55 r/min |
| Recommended Flow Rate | 80 L/min | 120 L/min | 220 L/min | 320 L/min | 360 L/min |
| Maximum Pressure | 35 MPa | 35 MPa | 35 MPa | 35 MPa | 35 MPa |
| Maximum Torque | 4,700 Nm | 7,000 Nm | 14,300 Nm | 23,300 Nm | 40,300 Nm |
The right model depends on more than excavator weight. Milling width affects how much material can be covered in each pass, while hydraulic flow, pressure, and torque influence cutting performance.
For example, YG’s smaller models have milling widths of 420–650 mm, while its largest model reaches 1,150 mm. Always check the excavator’s hydraulic capacity and attachment compatibility before purchasing.
Contact YG for Drum Cutter Specifications and Pricing

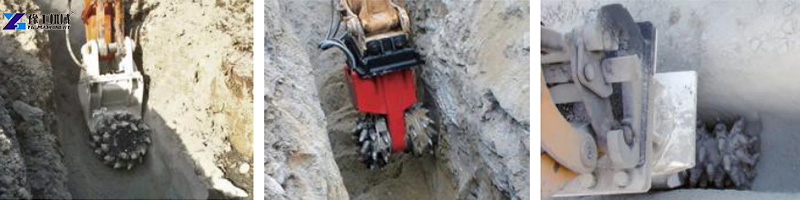

1. Milling Head for Excavator for Channel Construction
Excavating irrigation channels, drainage ditches, and utility trenches can be challenging when the ground contains hard rock or concrete. A drum cutter machine removes material progressively, helping operators control the excavation profile.
Typical applications:
- Irrigation and drainage channels
- Utility trench excavation
- Channel widening and profile correction
Buyer considerations:
- Excavator size: 6–20 tons as an initial reference
- Milling width: YG offers 420–1,150 mm
- Ground conditions: Hard, abrasive rock may reduce cutting efficiency and increase tooth wear
Choose the attachment according to channel dimensions, material hardness, and available working space.
Request Drum Cutter Machine Pricing

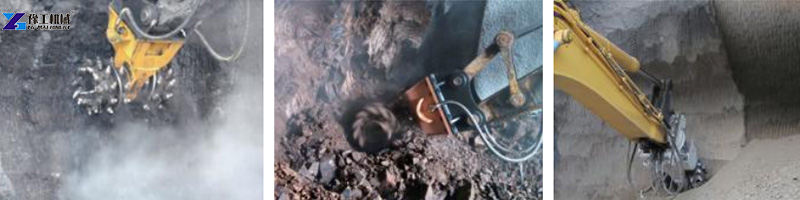

2. Drum Cutter Excavator for Tunnel Construction
Tunnel projects may require controlled rock removal to trim walls, ceilings, or uneven sections. A drum cutter machine can help adjust the tunnel profile in suitable ground conditions.
Typical applications:
- Tunnel wall and ceiling trimming
- Local rock removal
- Tunnel profile correction
Buyer considerations:
- Excavator size: 20–40 tons as a starting reference; restricted tunnels may require smaller equipment
- Hydraulic flow: YG models require approximately 80–360 L/min, depending on configuration
- Working clearance: Check tunnel dimensions and attachment size
For very hard rock or high-volume excavation, compare drum cutting with other suitable excavation methods.
Request Drum Cutter Machine Pricing

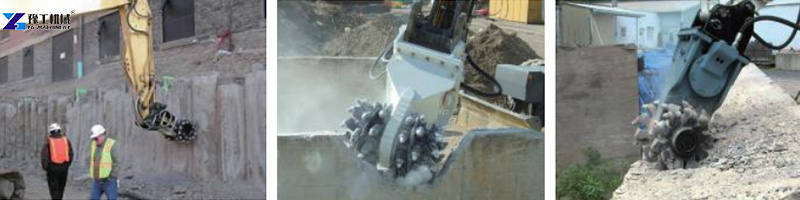

3. Rotary Drum Cutter for Demolition and Renovation
Renovation projects often require removing selected concrete sections without unnecessarily disturbing surrounding material. A drum cutter machine can help with controlled surface removal and concrete trimming.
Typical applications:
- Removing damaged concrete
- Trimming concrete edges and openings
- Surface preparation for repairs
Buyer considerations:
- Excavator size: 6–30 tons as an initial reference
- Reinforcement: Heavily reinforced concrete may increase tooth wear
- Removal requirements: Confirm the required depth and finish
For cutting steel beams, vehicle bodies, or scrap metal, an excavator shear attachment is generally more suitable.
Request Drum Cutter Machine Pricing

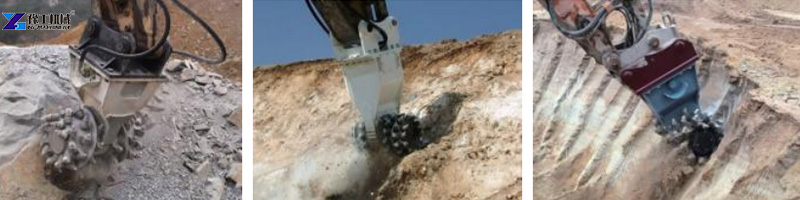

4. Drum Cutter Machine for Quarrying and Mining
Quarrying projects sometimes require localized rock excavation, slope trimming, or profile correction rather than bulk material removal. A rotary drum cutter can suit these tasks when rock conditions and production targets are appropriate.
Typical applications:
- Localized rock excavation
- Quarry face and slope trimming
- Rock profile correction
Buyer considerations:
- Excavator size: 30–60 tons for many larger quarrying jobs; smaller machines may suit localized work
- Maximum torque: YG models range from 4,700 to 40,300 Nm
- Rock properties: Hardness and abrasiveness affect cutting performance and tooth life
Torque alone does not determine productivity. Hydraulic capacity, cutting teeth, and geology also matter. A crawler drilling rig may complement the process when drilling is required.
Request Drum Cutter Machine Pricing

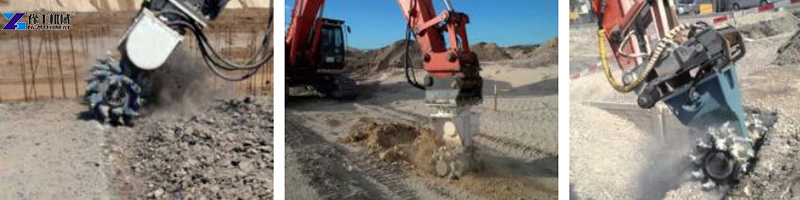

5. Drum Cutter Machine for Road Construction
Roadwork near buildings, traffic, or underground utilities often requires controlled removal of hard ground or concrete. A drum cutter excavator can help with selected cutting and trimming tasks.
Typical applications:
- Road widening in rocky areas
- Road foundation excavation
- Slope trimming and concrete removal
Buyer considerations:
- Excavator size: 10–40 tons as a preliminary reference
- Milling width: 420–1,150 mm across YG’s range
- Project volume: Evaluate cutting depth, length, and total material volume
A wider drum is not always better, especially for narrow cuts. For large volumes of very hard rock, compare productivity and operating costs with alternative methods.
Request Drum Cutter Machine Pricing

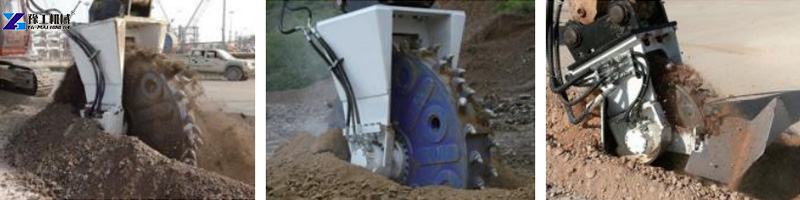

6. Rotary Drum Cutter for Cutting and Slotting
Some projects require a defined groove or channel for pipes, cables, or other utilities. A drum cutter machine can remove material along a planned path in suitable ground conditions.
Typical applications:
- Cable and pipe trenching
- Grooves in suitable concrete or rock
- Narrow profile cutting
Buyer considerations:
- Excavator size: 6–20 tons as an initial reference
- Required dimensions: Confirm the target width, depth, and profile
- Site safety: Locate underground utilities before excavation
YG milling widths range from 420 to 1,150 mm. Actual groove dimensions depend on the attachment geometry and working conditions, so confirm your requirements with the manufacturer.
Need a suitable drum cutter machine? Contact YG with your excavator weight, hydraulic flow, working pressure, material type, and project dimensions for configuration advice.
Request Drum Cutter Machine Pricing
FAQs About Drum Cutter Machines
Q1： What materials can a milling head for excavator cut?
Depending on the attachment and working conditions, it can cut suitable rock, concrete, and other hard materials. Material hardness, reinforcement, and required cutting depth affect performance.
Q2: What excavator size is required for a drum cutter?
YG’s listed models cover excavators from 6 to 60 tons. The right size depends on the application, attachment weight, hydraulic capacity, and working conditions.
Q3: What hydraulic flow does a rotary drum cutter need?
The recommended flow rates for YG models range from 80 to 360 L/min. Confirm the selected model’s requirements against your excavator’s available hydraulic flow and working pressure.
Q4: How often should drum cutter teeth be replaced?
Replacement frequency depends on material abrasiveness, operating hours, cutting technique, and tooth condition. Inspect the teeth regularly and replace worn or damaged components according to the manufacturer’s guidance.
Q5: How much does a drum cutter machine cost?
The price depends on model, specifications, configuration, and shipping destination. Send YG your excavator details and project requirements to request a quotation.
Request Drum Cutter Machine Pricing
Get a Quote for a Drum Cutter Machine
Choosing the right milling head for excavator starts with understanding your material, excavation profile, and excavator specifications. YG offers models for a range of excavator sizes and cutting requirements.
When requesting a quotation, provide your excavator model, operating weight, hydraulic flow, working pressure, target material, and application. This helps the YG team assess compatibility and recommend a suitable option.
